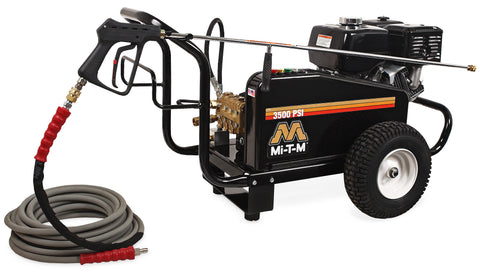

MI-T-M CW-3504-5MGM CW Premium Series Gasoline Belt Drive
This belt-drive pressure washer is designed for heavy-duty cleaning of mud and grime. It is built for professional contractors and features a 420cc overhead valve engine.
- Pressure3500psi
- Flow3.8gpm
- Engine420cc
- Net Weight216.00lbs
01Features & Build
-
Pump
- External bypass system prevents heat accumulation
- Forged brass manifold construction
- Integrated thermal relief valve
- Water filter includes clear sleeve for visual inspection
-
Frame
- Powder-coated steel chassis
- Two-piece belt guard assembly
- 13-inch flat-free tires
-
Component
- Heavy-duty belt drive system
02Specifications11
| PSI | 3500 |
|---|---|
| GPM | 3.8 |
| Displacement/ Engine | 420cc Mi-T-M OHV |
| Pump | General |
| Unloader | Mi-T-M, Factory Preset |
| Lance | 48 in. |
| Net Weight | 216.00 lbs. |
| Shipping Weight | 290.00 lbs. |
| Length | 46.00 in. |
| Width | 28.00 in. |
| Height | 30.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- Quick connect nozzles - 0º, 15º, 25º and 40º
- 50-foot x 3/8-inch non-marking hose
- Insulated trigger gun
04Optional Accessories1
- CX-0054Roll Cage. Designed for cold water pressure washers to protect equipment, comes with a lifting hook, 1 1/4-inch powder coated steel tubing
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearGeneral Pump
- 3 YearMi-T-M Engine
- 1 YearMi-T-M Unloader
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 290.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
