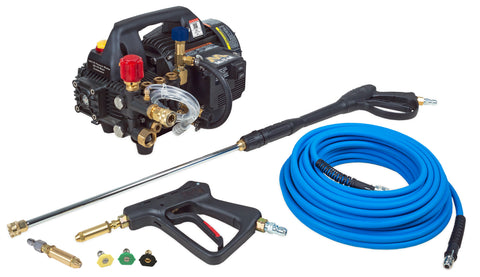

MI-T-M CM-1400-1MEH-M Mister Combination Electric Direct Drive
This dual-purpose system functions as both a pressure washer and a disinfectant mister for indoor and outdoor sanitation. It features a compact, hand-carry design built on a powder-coated steel mounting plate.
- Pressure1400psi
- Flow1.5gpm
- Motor1.5HP
- Weight45.00lbs.
01Features & Build
-
Mister Droplet Size
- Produces 20 to 30-micron droplets at 2 inches from the tip when operating at 350 PSI.
-
Pump
- Equipped with a triplex crankshaft pump.
- Includes an adjustable pressure unloader.
- Features a thermal relief valve for overheat protection.
- Fitted with an in-line water strainer.
- Includes oil drain, fill port, and sight glass for maintenance.
- Integrated misting valve.
- Features a low-pressure detergent injector for pressure washer mode only.
-
Motor
- Totally enclosed fan-cooled electric motor.
- Includes a 35-foot power cord with GFCI and NEMA 5-15P plug.
-
Frame
- Powder-coated steel mounting plate with center-balanced lift handle and four rubber isolators.
02Specifications12
| Type | Hand Carry |
|---|---|
| PSI - Pressure Washer Mode | 1400 |
| GPM - Pressure Washer Mode | 1.5 |
| PSI - Mister Mode | 350 |
| Flow - Mister Mode (GPM / GPH) | .049 / 2.93 |
| Horsepower/Motor | 1.5 HP, 120V, 1Ø, 13.5A |
| Plug Type | NEMA 5-15P |
| Net Weight | 45.00 lbs. |
| Shipping Weight | 52.00 lbs. |
| Length | 14.00 in. |
| Width | 11.00 in. |
| Height | 10.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included4
- Quick connect nozzles – 15°, 25°, detergent and misting nozzles
- 75-foot x ¼-inch non-marking hose
- Two piece, 36-inch lance with trigger gun
- Additional trigger gun with misting nozzle
04Warranty
- 1 YearElectric Motor
- 1 YearPump
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 52.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
