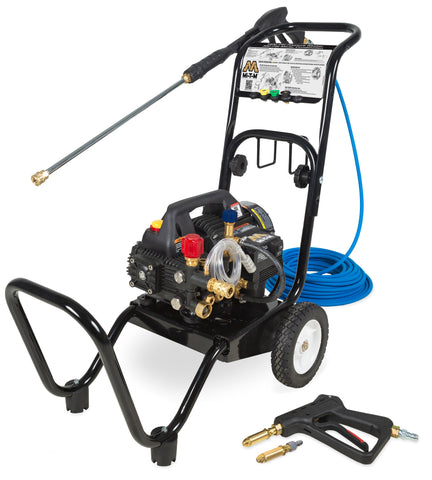

MI-T-M CM-1400-0MEC-M Mister Combination Electric Direct Drive
This dual-purpose system functions as both a pressure washer and a disinfectant mister for indoor and outdoor sanitation. It is designed for facility maintenance crews and features a 1.5 HP electric motor for consistent operation.
- Pressure1400psi
- Flow1.5gpm
- Motor1.5HP
- Net Weight85.00lbs.
01Features & Build
-
Mister Droplet Size
- Produces 20 to 30-micron droplets measured at 2-inches from the tip at 350-PSI
-
Pump
- Triplex crankshaft design
- Adjustable pressure unloader valve
- Integrated thermal relief valve
- In-line water filtration strainer
- Accessible oil drain, fill port, and sight glass
- Dedicated misting valve
- Low-pressure detergent injector for pressure washer mode only
-
Motor
- Totally enclosed fan-cooled (TEFC) electric motor
- 35-foot power cord equipped with GFCI and NEMA 5-15P plug
-
Frame
- Powder-coated steel construction with upright tilt-back design
- Two rubber vibration isolators and two 8-inch tires
02Specifications12
| Type | Cart-mount |
|---|---|
| PSI - Pressure Washer Mode | 1400 |
| GPM - Pressure Washer Mode | 1.5 |
| PSI - Mister Mode | 350 |
| Flow - Mister Mode (GPM / GPH) | .049 / 2.93 |
| Horsepower/Motor | 1.5 HP, 120V, 1Ø, 13.5A |
| Plug Type | NEMA 5-15P |
| Net Weight | 85.00 lbs. |
| Shipping Weight | 110.00 lbs. |
| Length | 26.00 in. |
| Width | 18.00 in. |
| Height | 38.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included4
- Quick connect nozzles – 15°, 25°, detergent and misting nozzles
- 75-foot x ¼-inch non-marking hose
- Two piece, 36-inch lance with trigger gun
- Additional trigger gun with misting nozzle
04Warranty
- 1 YearElectric Motor
- 1 YearPump
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships fully assembled with a shipping weight of 110.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
