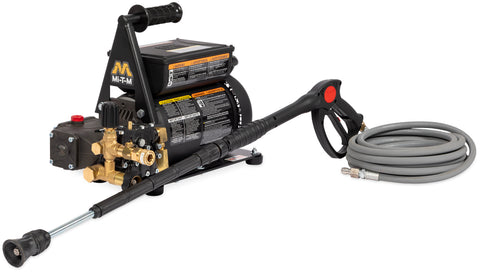

MI-T-M CD-1002-4MUH CD Series Electric Direct Drive
This portable hand-carry pressure washer is designed for mobile cleaning applications. It features a direct-drive pump configuration for consistent performance in a compact footprint.
- Pressure1000psi
- Flow2.0gpm
- Motor1.5HP
- Net Weight67.00lbs.
01Features & Build
-
Pump
- Cast iron manifold with anti-corrosion coating
- Integrated thermal and safety relief valves
- Low-pressure detergent injection system
- Rated for incoming water temperatures up to 175°F
-
Motor
- Totally enclosed fan-cooled motor with magnetic circuit breaker
- 35-foot power cord with GFCI and NEMA 5-15P plug
- ETL certified for US and Canada
-
Frame
- Powder-coated steel mounting plate
- Center-balanced lift handle
- Four vibration-dampening rubber isolators
02Specifications11
| PSI | 1000 |
|---|---|
| GPM | 2.0 |
| Horsepower/Motor | 1.5 HP, 120V, 1Ø, 13.2A |
| Pump | General |
| Unloader | Adjustable Pressure |
| Plug Type | NEMA 5-15P |
| Net Weight | 67.00 lbs. |
| Shipping Weight | 78.00 lbs. |
| Length | 21.00 in. |
| Width | 13.00 in. |
| Height | 15.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- 15° high/low pressure nozzle
- 25-foot x 3⁄8-inch non-marking hose
- Two-piece, 36-inch lance with insulated trigger gun
04Optional Accessories1
- CX-0030High Pressure Hose - 50-Foot. For when you need extra hose for added mobility
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearGeneral Pump
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships fully assembled with a shipping weight of 78.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
