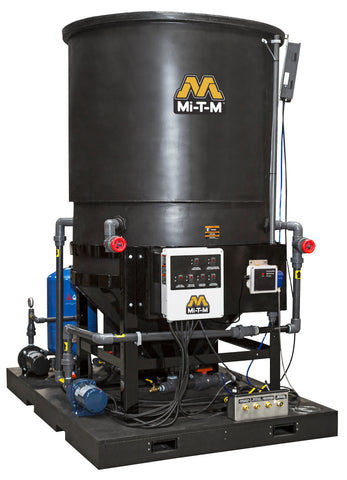

MI-T-M Biological Recycle Systems/Clarifier - BIO-15Series BIO-15-0M10
Part number: BIO-15-0M10
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times
This clarifier removes accumulated solids from wastewater to increase the efficiency of downstream treatment systems. It is designed for industrial wash water management and features a 600-gallon tank capacity.
- Flow Rate0-15gpm
- Tank Capacity600gallon
- Sump Pump1.0hp
- Media Surface1,300sq. ft.
01Features & Build
-
System Components
- Cone-bottom tank design
- Recycles wash water while mitigating odor issues
- Simplified maintenance and operation requirements
- Integrated 1.0 HP sump pump
- Corrosion-resistant and UV-stabilized poly-skid base
- Self-priming peristaltic pump
- Mazzei® venturi air injection assembly
- ETL listed NEMA-4 rated corrosion-proof control panel
-
Recommended Applications
- Golf course equipment wash water management
- Solid-waste hauler vehicle wash water treatment
- Food processing plant wastewater pre-treatment
- Petro-chemical organic particulate removal
- General organic compound wastewater treatment
-
Available Configurations
- BIO-15-0M10: 230V, 1-phase, 20.0A with 3/4 HP transfer pump
- BIO-15-0M30: 230V, 3-phase, 15.0A with 1/2 HP transfer pump
-
Pit System Requirements
- Untreated wash water must be directed into a properly sized pit system to ensure effective downstream treatment and system performance.
02Specifications9
| Flow Rate | 0-15 GPM |
|---|---|
| Clarifier Tank | 600 gallon |
| Media | 1,300 sq. ft. |
| Sump Pump (Included) | 1.0 HP |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 1250.00 lbs. |
| Length | 60.00 in. |
| Width | 96.00 in. |
| Height | 110.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories12
- WX-0014Pinch Valve Assembly. Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 230V, single phase
- WX-0119High Solids Media. Allows for debris to travel easily through media with vertical design
- WX-0128Hour Meter. Displays the number of hours unit has been in operation
- WX-0020Ozone. For specialized applications where sterilization of the waste stream is desired
- WX-0024Recirculation Option for Floats. If used along with the WX-0042, water will recirculate from product tank back to pit
- WX-0030BIO Sump Pump Swap. Customized option, converts surface-mount sump pump to submersible sump pump, single phase, 230V
- WX-0041165-Gallon Water Tank Upgrade. For when a larger volume of usable water is needed
- WX-0042Product Tank Overflow. Allows water to cycle back to collection pit
- WX-0043460V, 3 Phase. Upgrades 230V model to operate at 460V, 3 phase
- WX-0044Ozone. For specialized applications where sterilization of the waste stream is desired
- WX-0045Ozone. For specialized applications where sterilization of the waste stream is desired
- WX-0101BIO Sump Pump Swap. Customized option, converts surface-mount sump pump to submersible sump pump, 3 phase, 230V
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Models & Part Numbers2
- BIO-15-0M10
- BIO-15-0M30
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a total shipping weight of 1250.00 lbs. Freight costs are quoted based on the specific delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
