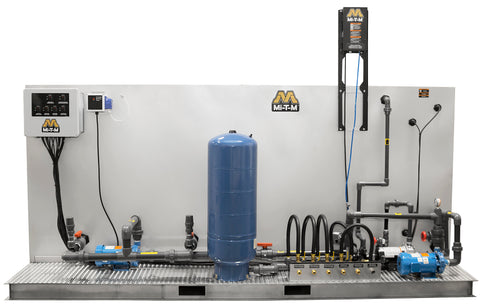

MI-T-M Biological Recycle Systems - BIO-35Series BIO-35R-0M10

• System Components

  • Bioreaction tank
  • Biofilm generative media
  • Venturi aeration system
  • Pressurized tank assembly
  • Pressure manifold
  • 1/2 HP submersible sump pump
  • Marine aluminum construction with sloped bottom
  • ETL listed NEMA-4 rated corrosion-proof control panel

• Recommended Applications

  • Rental yards and heavy equipment dealers
  • Trucking and diesel repair facilities
  • Military bases and aircraft maintenance
  • Shipyards and municipal DOT operations
  • Oil fields and engine manufacturing

• Electrical Configurations

  • 230V, 1-phase, 25.0A standard configuration
  • Optional 230V, 3-phase, 15.0A configuration

• Pit System Requirements

  • Requires an integrated pit system to collect wash water prior to treatment.
  • Proper pit design is a prerequisite for effective wash water recycling.

Specifications are supplied by the manufacturer and are subject to change without notice.

• WX-0014Pinch Valve Assembly. Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 230V, single phase
• WX-0037pH Control System, 230V. For when pH adjustment is needed
• WX-0039Pinch Valve Assembly. Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 120V, single phase
• WX-0102pH Control System, 120V. For when pH adjustment is needed
• WX-0128Hour Meter. Displays the number of hours unit has been in operation
• WX-0133Coagulation System. Used in heavy solids applications to help dirt and solids settle for easy removal
• WX-0134Dual pH Control System, 230V. Two set points where pH can be adjusted
• WX-0135Dual pH Control System, 115V. Two set points where pH can be adjusted
• WX-0015Ozone. For specialized applications where sterilization of the waste stream is desired, 230V, single phase
• WX-0029550-Gallon Product Tank Expansion. For when larger volume of usable water is needed
• WX-0100BIO Sump Pump Conversion. Customized option, converts submersible pump to surface-mount sump pump
• WX-0122High Solids Media. Allows for debris to travel easily through media with vertical design
• WX-0127Epoxy-Lined Tank. High solid polyamide epoxy-lined tank is chemical and corrosion-resistant
• WX-0136Heater, 230V. Promotes heat for microbes, powered from main box, additional 20A required
• WX-0137Heater, 460V. Promotes heat for microbes, powered from main box, additional 20A required
• WX-0142250-Gallon Auxiliary Poly Tank. Allows you to treat the BIO water with ozone in a separate poly tank
• WX-0049460V. Changes 230V model to 460V, 3 phase
• WX-0052Ozone. For specialized applications where sterilization of the waste stream is desired, 208-230V, 3 phase
• WX-0053Ozone. For specialized applications where sterilization of the waste stream is desired, 460V, 3 phase

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• BIO-35R-0M10
• BIO-35R-0M30

• Product Sheet (PDF)
• Product Manual (PDF)
