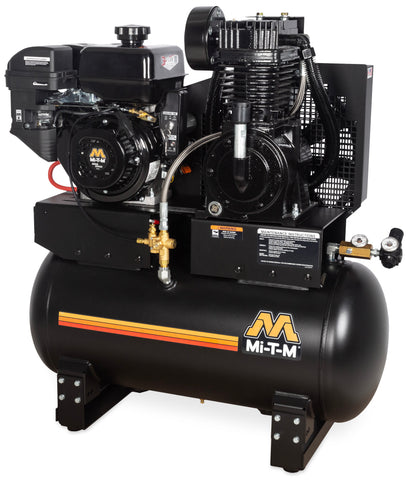

MI-T-M AM2-SM09-30ME 30-Gallon Two Stage Gasoline

• Compressor Pump

  • Cast iron pump construction
  • Splash lubrication system
  • Stainless-steel braided discharge hose
  • Large canister intake filter
  • Oil level sight glass

• Frame

  • Powder-coated ASME-certified receiver tank
  • 3/16-inch base plate for vibration reduction
  • Powder-coated two-piece belt guard
  • Removable base plate for installation flexibility
  • ASME Boiler & Pressure Vessel Code UM certified

• Components

  • Regulator with dual gauges for tank and outlet pressure
  • Manual drain valve
  • 16-1/2-inch flywheel
  • Pilot valve unloader
  • Start/stop control set at 145 to 175 PSI
  • 150-PSI maximum rated regulator

Specifications are supplied by the manufacturer and are subject to change without notice.

• AX-0003Manual Drain/Regulator/Metal Bowl. Drains moisture from air system
• AX-0017Electric Start. For easy starting - sealed battery, tray, box and cables included
• AX-0077Battery Box and Tray. Attaches to engine side of unit
• AX-0105Remote Start/Choke, Sealed Cable. 7-foot wire extension for key switch

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• 3 YearMi-T-M Engine
• 2 YearPump Exchange

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

• Product Sheet (PDF)
• Product Manual (PDF)
