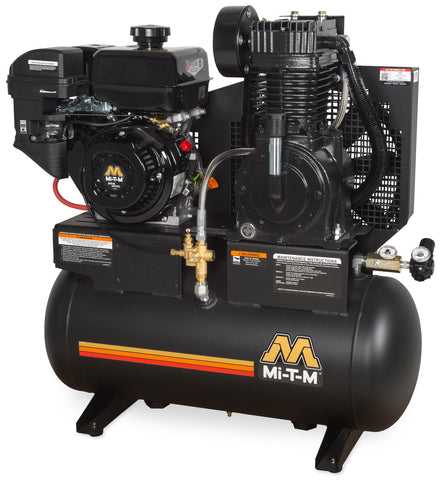

MI-T-M AM2-SM09-20M 20-Gallon Two Stage Gasoline
This two-stage air compressor provides reliable power for remote jobsites. It is designed for contractors requiring consistent airflow, featuring a heavy-duty 300cc OHV engine.
- Flow17.2cfm
- Pressure175psi
- Engine300cc
- Net Weight306.00lbs
01Features & Build
-
Compressor Pump
- Cast iron pump construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight glass
-
Frame
- Powder-coated ASME certified receiver tank
- 3/16-inch base plate for vibration reduction
- Powder-coated two-piece belt guard
- ASME Boiler & Pressure Vessel Code UM certified
-
Components
- Regulator with dual gauges for tank and outlet pressure
- Manual drain valve
- 16 1/2-inch flywheel
- Pilot valve unloader
- Start/stop control set at 145 to 175-PSI
02Specifications8
| CFM @ PSI | 17.2 @ 175 |
|---|---|
| Displacement/ Engine | 300cc Mi-T-M OHV |
| Engine Idle Control | Pneumatic |
| Net Weight | 306.00 lbs. |
| Shipping Weight | 356.00 lbs. |
| Length | 37.00 in. |
| Width | 18.00 in. |
| Height | 38.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories1
- AX-0003Manual Drain/Regulator/Metal Bowl. Drains moisture from air system
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Warranty
- 3 YearMi-T-M Engine
- 2 YearPump Exchange
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 356.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
