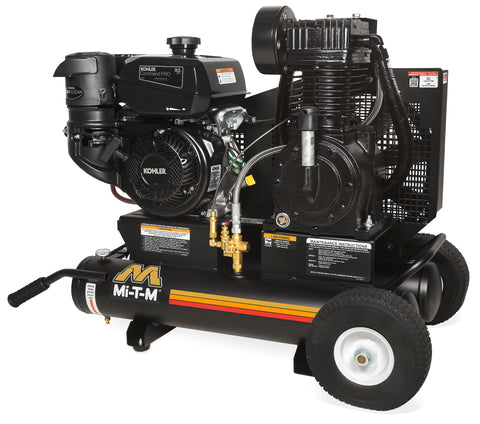

MI-T-M AM2-PK95-08M 8-Gallon Two Stage Gasoline
This wheelbarrow-style compressor powers pneumatic tools for construction and shop applications. It features a heavy-duty 277cc Kohler engine for reliable performance on job sites.
- Airflow17.2cfm
- Pressure175psi
- Engine277cc
- Net Weight260.00lbs
01Features & Build
-
Compressor Pump
- Cast iron pump construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight glass
-
Frame
- Powder-coated twin tank receivers
- 3/16-inch base plate for vibration reduction
- Two-piece powder-coated belt guard
- 10-inch flat-free tires
-
Components
- Regulator with dual gauges for tank and outlet pressure
- Manual drain valves for maintenance
- 16 1/2-inch flywheel
- Pilot valve unloader
- Start/stop control set at 145 to 175-PSI
02Specifications8
| CFM @ PSI | 17.2 @ 175 |
|---|---|
| Displacement/ Engine | 277cc Kohler CH395 OHV |
| Engine Idle Control | Cable Throttle |
| Net Weight | 260.00 lbs. |
| Shipping Weight | 330.00 lbs. |
| Length | 44.00 in. |
| Width | 26.00 in. |
| Height | 31.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories2
- AX-0003Manual Drain/Regulator/Metal Bowl. Drains moisture from air system
- AX-0084Stationary Option. Converts the portable model to a stationary model, removes the tires and handles
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Warranty
- 3 YearRehlko Engine
- 2 YearPump Exchange
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 330.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
