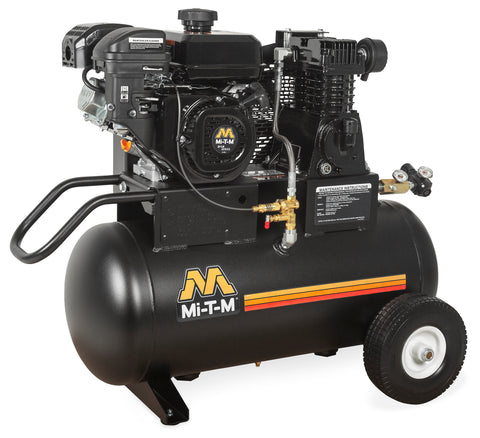

MI-T-M AM1-PM07-20M 20-Gallon Single Stage Gasoline

$2,560.00

This single-stage air compressor is designed for contractors requiring portable pneumatic power. It features a 212cc overhead valve engine to drive high-volume air output for jobsite tools.

Flow13.9cfm
Pressure90psi
Engine212cc
Net Weight212.00lbs

01Features & Build

Compressor Pump
- Cast iron pump construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight glass
Frame
- Powder-coated ASME-certified receiver tank
- 3/16-inch base plate for vibration reduction
- Powder-coated two-piece belt guard
- 10-inch flat-free tires
Components
- Regulator with dual gauges for tank and outlet pressure
- Manual drain valve
- 12-inch flywheel
- Pilot valve unloader
- Start/stop control set at 95 to 125 PSI

02Specifications8

CFM @ PSI	13.9 @ 90
Displacement/ Engine	212cc Mi-T-M OHV
Engine Idle Control	Cable Throttle
Net Weight	212.00 lbs.
Shipping Weight	272.00 lbs.
Length	37.00 in.
Width	23.50 in.
Height	33.00 in.

Specifications are supplied by the manufacturer and are subject to change without notice.

03Optional Accessories2

AX-0003Manual Drain/Regulator/Metal Bowl. Drains moisture from air system
AX-0027Stationary Kit. Converts the portable model to a stationary model, removes the wheels and adds the stationary leg

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

04Warranty

3 YearMi-T-M Engine
2 YearPump Exchange

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

05Documents & Downloads2

06Shipping & Ordering

This unit ships crated with a shipping weight of 272.00 lbs. Freight is quoted to the delivery address.

Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
