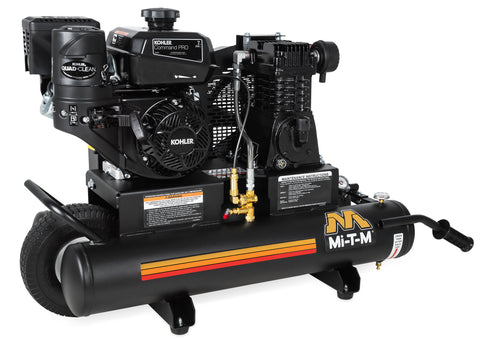

MI-T-M AM1-PK07-08M 8-Gallon Single Stage Gasoline

$2,503.00

This single-stage gasoline air compressor provides reliable pneumatic power for construction site tools. It is designed for mobile contractors who require a portable wheelbarrow configuration with a durable cast iron pump.

Flow13.9cfm
Pressure90psi
Engine208cc
Net Weight175.00lbs

01Features & Build

Compressor Pump
- Cast iron construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight glass
Frame
- Powder-coated twin tank receivers
- 3/16-inch base plate for vibration reduction
- Powder-coated two-piece belt guard
- 10-inch flat-free tire
Components
- Regulator with dual gauges for tank and outlet pressure
- Manual drain valves
- 12-inch flywheel
- Pilot valve unloader
- Start/stop control set at 95 to 125 PSI

02Specifications8

CFM @ PSI	13.9 @ 90
Displacement/ Engine	208cc Kohler CH270 OHV
Engine Idle Control	Cable Throttle
Net Weight	175.00 lbs.
Shipping Weight	200.00 lbs.
Length	44.50 in.
Width	18.50 in.
Height	27.00 in.

Specifications are supplied by the manufacturer and are subject to change without notice.

03Optional Accessories2

AX-0003Manual Drain/Regulator/Metal Bowl. Drains moisture from air system
AX-0078Stationary Option. Converts the portable model to a stationary model, removes the wheel

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

04Warranty

3 YearRehlko Engine
2 YearPump Exchange

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

05Documents & Downloads2

06Shipping & Ordering

This unit ships fully assembled with a shipping weight of 200.00 lbs. Freight is quoted to the delivery address.

Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
