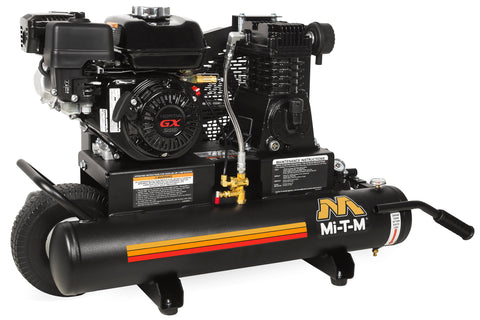

MI-T-M AM1-PH65-08M 8-Gallon Single Stage Gasoline
This air compressor powers pneumatic tools on construction sites using a durable wheelbarrow design. It is built for mobile contractors and features a 196cc Honda GX200 engine for reliable performance.
- Flow13.9cfm
- Pressure90psi
- Engine196cc
- Net Weight175.00lbs
01Features & Build
-
Compressor Pump
- Cast iron pump construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Integrated oil level sight glass
-
Frame
- Powder-coated twin tank receivers
- 3/16-inch base plate for vibration reduction
- Powder-coated two-piece belt guard
- 10-inch flat-free tire
-
Components
- Regulator with dual gauges for tank and outlet pressure
- Manual drain valves for maintenance
- 12-inch flywheel
- Pilot valve unloader
- Start/stop control set at 95 to 125-PSI
02Specifications8
| CFM @ PSI | 13.9 @ 90 |
|---|---|
| Displacement/ Engine | 196cc Honda GX200 OHV |
| Engine Idle Control | Pneumatic |
| Net Weight | 175.00 lbs. |
| Shipping Weight | 200.00 lbs. |
| Length | 44.50 in. |
| Width | 18.50 in. |
| Height | 27.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories2
- AX-0003Manual Drain/Regulator/Metal Bowl. Drains moisture from air system
- AX-0078Stationary Option. Converts the portable model to a stationary model, removes the wheel
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Warranty
- 3 YearHonda Engine
- 2 YearPump Exchange
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships fully assembled with a shipping weight of 200.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
