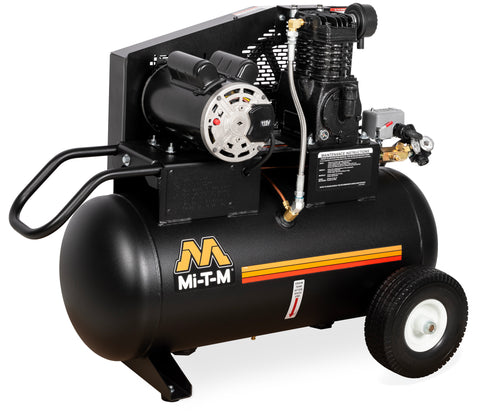

MI-T-M AM1-PE02-20M 20-Gallon Single Stage Electric

• Compressor Pump

  • Cast iron pump construction
  • Splash lubrication system
  • Stainless-steel braided discharge hose
  • High-capacity canister intake filter
  • Integrated oil level sight glass

• Motor

  • Automatic start/stop operation
  • Thermal overload protection
  • 8-foot power cord with NEMA 5-20P plug
  • ETL certified for US and Canada

• Frame

  • Powder-coated ASME-certified receiver tank
  • 3/16-inch base plate for vibration reduction
  • Powder-coated two-piece belt guard
  • 10-inch flat-free tires

• Components

  • Regulator with dual gauges for tank and outlet pressure
  • Manual drain valve
  • 10-inch flywheel
  • Industrial-grade pressure switch
  • Pressure settings: 95 to 125 PSI

Specifications are supplied by the manufacturer and are subject to change without notice.

• AX-0002Auto Drain/Regulator/Plastic Bowl. Drains moisture from air system
• AX-0003Manual Drain/Regulator/Metal Bowl. Drains moisture from air system
• AX-0027Stationary Kit. Converts the portable model to a stationary model, removes the wheels and adds the stationary leg
• AX-0008Dual Control. Compressor can be operated in start/stop mode or continuous run where pilot valve exhausts air to atmosphere

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• 2 YearPump Exchange
• 1 YearElectric Motor

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
