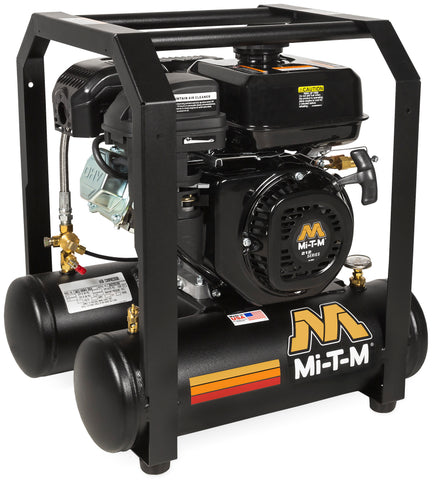

MI-T-M AM1-HM04-05M 5-Gallon Single Stage Gasoline
This gasoline-powered air compressor provides portable pneumatic power for residential and light commercial applications. It features a 212cc overhead valve engine designed for consistent performance in remote locations.
- Flow4.8cfm
- Pressure90psi
- Engine212cc
- Net Weight77.00lbs
01Features & Build
-
Compressor Pump
- Cast iron cylinder construction
- Splash lubricated aluminum crankcase
- Stainless-steel braided discharge hose
- Cartridge-style air filter
-
Frame
- Powder-coated steel frame with integrated roll cage
- Powder-coated twin tank receivers
-
Components
- Regulator with dual gauges for tank and outlet pressure monitoring
- Manual drain and pressure relief valves
- Pilot valve unloader system
- Start/stop control set at 95 to 125-PSI
02Specifications8
| CFM @ PSI | 4.8 @ 90 |
|---|---|
| Displacement/ Engine | 212cc Mi-T-M OHV |
| Engine Idle Control | Cable Throttle |
| Net Weight | 77.00 lbs. |
| Shipping Weight | 85.00 lbs. |
| Length | 21.00 in. |
| Width | 17.50 in. |
| Height | 23.25 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Warranty
- 3 YearMi-T-M Engine
- 1 YearCompressor Pump
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
04Documents & Downloads2
05Shipping & Ordering
This unit ships fully assembled with a shipping weight of 85.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
