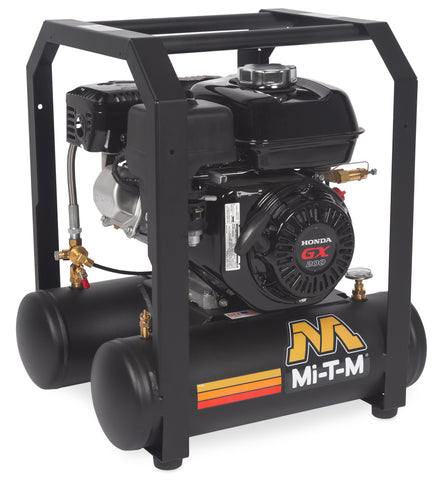

MI-T-M AM1-HH04-05M 5-Gallon Single Stage Gasoline
This gasoline-powered air compressor provides portable pneumatic energy for contractors and maintenance crews. It features a 196cc Honda GX200 engine for reliable operation in remote locations.
- Flow4.8cfm
- Pressure90psi
- Engine196cc
- Net Weight84.00lbs
01Features & Build
-
Compressor Pump
- Cast iron cylinder construction
- Splash-lubricated aluminum crankcase
- Stainless-steel braided discharge hose
- Cartridge-style air intake filter
-
Frame
- Powder-coated steel roll cage frame
- Powder-coated twin tank receiver design
-
Components
- Integrated regulator with dual gauges for tank and outlet pressure
- Manual drain and pressure relief valves
- Pilot valve unloader system
- Automatic start/stop control set at 95 to 125 PSI
02Specifications8
| CFM @ PSI | 4.8 @ 90 |
|---|---|
| Displacement/ Engine | 196cc Honda GX200 OHV |
| Engine Idle Control | Pneumatic |
| Net Weight | 84.00 lbs. |
| Shipping Weight | 92.00 lbs. |
| Length | 21.00 in. |
| Width | 17.50 in. |
| Height | 23.25 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Warranty
- 3 YearHonda Engine
- 1 YearCompressor Pump
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
04Documents & Downloads2
05Shipping & Ordering
This unit ships fully assembled with a shipping weight of 92.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
