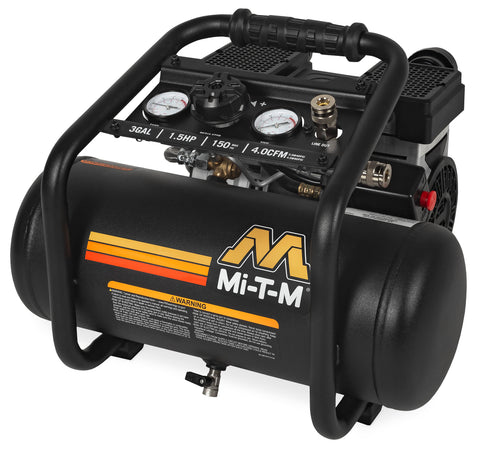

MI-T-M AM1-HE15-03QM 3-Gallon Single Stage Electric
This single-stage compressor provides portable air power for impact wrenches and grinders. It is designed for contractors requiring mobility, featuring a lightweight 51-pound construction.
- Flow4.0cfm
- Pressure90psi
- Motor1.5hp
- Net Weight51.00lbs
01Features & Build
-
Compressor Pump
- Aluminum pump construction
- Oil-free aluminum crankcase
- Copper discharge line
- Cartridge-style air filter
-
Motor
- Induction motor
- Integrated thermal overload protection
-
Frame
- Powder-coated tank finish
- Protective housing for pump and motor
-
Components
- Regulator with dual gauges for tank and outlet pressure
- Manual drain and pressure relief valves
- Industrial interchange quick-connect fittings
- Start/stop pressure settings at 95 to 125 PSI
- Integrated control panel
- ETL certified for US and Canada
-
Miscellaneous
- Operating noise level below 70 dBA
- NEMA 5-15P plug configuration
02Specifications8
| CFM @ PSI | 4.0 @ 90 |
|---|---|
| Horsepower/Motor | 1.5 HP, 120V, 15.0A |
| Plug Type | NEMA 5-15P |
| Net Weight | 51.00 lbs. |
| Shipping Weight | 58.00 lbs. |
| Length | 16.00 in. |
| Width | 15.50 in. |
| Height | 14.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Warranty
- 1 YearCompressor Pump
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
04Documents & Downloads2
05Shipping & Ordering
This unit ships assembled with a shipping weight of 58.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
