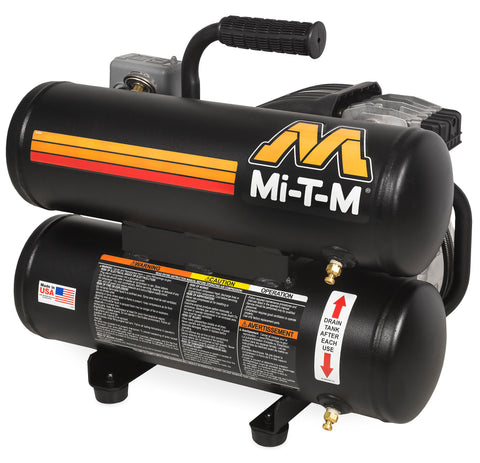

MI-T-M AM1-HE02-05M 5-Gallon Single Stage Electric
This portable air compressor is designed for contractors requiring a compact unit for jobsite pneumatic tools. It features a 2.0 HP electric motor capable of delivering 4.2 CFM at 90 PSI.
- Flow4.2cfm
- Pressure90psi
- Motor2.0hp
- Net Weight61.00lbs
01Features & Build
-
Compressor Pump
- Cast iron cylinder construction
- Splash lubricated aluminum crankcase
- Stainless-steel braided discharge hose
- Integrated inlet air filter
-
Motor
- Thermal overload protection included
- 8-foot power cord
- ETL certified for US and Canada
- NEMA 5-15P plug type
-
Frame
- Powder coated twin tank configuration
- Protective housing for pump and motor
-
Components
- Regulator with dual gauges for tank and outlet pressure
- Manual drain and pressure relief valves
- Industrial interchange quick connect fittings
- Start/stop control set at 95 to 125 PSI
02Specifications8
| CFM @ PSI | 4.2 @ 90 |
|---|---|
| Horsepower/Motor | 2.0 HP, 120V, 15.0A |
| Plug Type | NEMA 5-15P |
| Net Weight | 61.00 lbs. |
| Shipping Weight | 70.00 lbs. |
| Length | 20.50 in. |
| Width | 15.50 in. |
| Height | 17.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Warranty
- 1 YearCompressor Pump
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
04Documents & Downloads2
05Shipping & Ordering
This unit ships fully assembled with a shipping weight of 70.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
