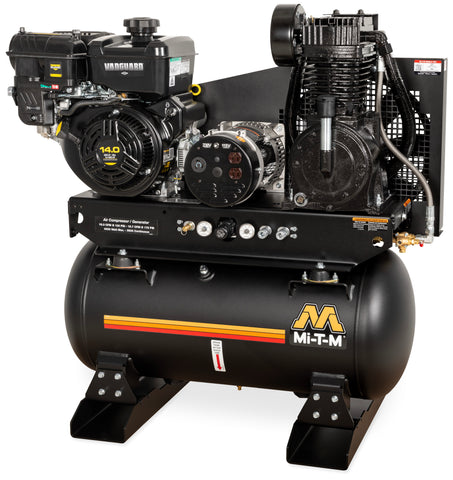

MI-T-M AG2-SM14-30M 30-Gallon Two Stage Gasoline Combination

$5,325.00

This combination unit provides simultaneous air compression and electrical power for contractors requiring a dual-purpose mobile workstation. It features a 420cc OHV engine to drive both the two-stage pump and the integrated alternator.

CFM @ PSI15.7 @ 175
Alternator Wattage: Max. Output4000 watts
Alternator Wattage: Cont. with Comp. On-Load2300 watts
Alternator Wattage: Cont. with Comp. Off-Load3500 watts

Gasoline models sold in California require a CARB compliant engine; consult factory for availability.

01Features & Build

Compressor Pump
- Cast iron construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight glass
Generator
- Brushless alternator design
- Total harmonic distortion (THD) under 6%
- 100% copper windings
- Includes (2) NEMA 5-20R 120V 20A and (1) NEMA L6-20R 240V 20A receptacles
Frame
- Powder-coated ASME-certified receiver tank
- 3/16-inch base plate for vibration reduction
- Powder-coated two-piece belt guard
- Removable base plate for flexible mounting
Components
- Regulator with dual gauges for tank and outlet pressure
- 150-PSI maximum rated regulator
- Manual drain valve
- 16.5-inch flywheel
- Pilot valve unloader

02Specifications10

CFM @ PSI	15.7 @ 175
Alternator Wattage: Max. Output	4000 watts
Alternator Wattage: Cont. with Comp. On-Load	2300 watts
Alternator Wattage: Cont. with Comp. Off-Load	3500 watts
Displacement/ Engine	420cc Mi-T-M OHV
Net Weight	450.00 lbs.
Shipping Weight	550.00 lbs.
Length	40.00 in.
Width	24.50 in.
Height	45.00 in.

Specifications are supplied by the manufacturer and are subject to change without notice.

03Optional Accessories3

IX-0001Vibration Isolator Pads. Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
AX-0063Lifting Hook. For easier portability
AX-0075Idle Down. When activated it automatically throttles down engine to conserve fuel, start/stop control set at 145 to 175-PSI

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

04Warranty

3 YearMi-T-M Engine
2 YearAlternator
2 YearPump Exchange

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

05Documents & Downloads2

06Shipping & Ordering

This unit ships crated with a shipping weight of 550.00 lbs. Freight is quoted to the delivery address.

Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
