Base-Mount Two Stage Gasoline Combination - AG2-SK14-BE

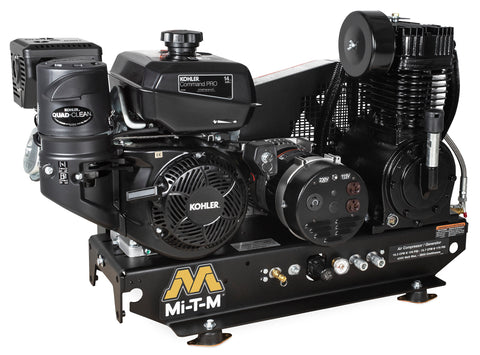

MI-T-M AG2-SK14-BE Base-Mount Two Stage Gasoline Combination

$5,814.00

This gasoline-powered air compressor and generator combination provides dual-utility power for remote jobsites. It features a 429cc OHV engine designed for continuous operation of pneumatic tools and electrical equipment.

Airflow15.7cfm
Pressure175psi
Max Watts4000watts
Engine429cc
Net Weight332lbs

This unit features a 49-state engine and is not for sale in California.

01Features & Build

Compressor Pump
- Cast iron pump construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Integrated oil level sight glass
Generator
- Brushless alternator design
- Total harmonic distortion (THD) under 6%
- 100% copper windings
- Outlets: (2) NEMA 5-20R 120V 20A and (1) NEMA L6-20R 240V 20A
Frame
- 3/16-inch base plate for vibration dampening
- Powder-coated two-piece belt guard
Components
- Regulator with dual gauges for tank and outlet pressure
- 150-PSI maximum rated regulator
- Manual drain valves for maintenance
- 12 or 16.5-inch flywheel
- Pilot valve unloader

02Specifications10

CFM @ PSI	15.7 @ 175
Alternator Wattage: Max. Output	4000 watts
Alternator Wattage: Cont. with Comp. On-Load	2300 watts
Alternator Wattage: Cont. with Comp. Off-Load	3500 watts
Displacement/ Engine	429cc Rehlko CH440 OHV
Net Weight	332.00 lbs.
Shipping Weight	397.00 lbs.
Length	47.00 in.
Width	22.00 in.
Height	28.00 in.

Specifications are supplied by the manufacturer and are subject to change without notice.

03Optional Accessories3

AX-0063Lifting Hook. For easier portability
AX-0070Battery Tray, Box and 2-Foot of Cables. Attaches to engine side of unit
AX-0016Battery, Battery Tray, Box and 2-Foot Cables. Attaches to engine side of unit

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

04Warranty

3 YearRehlko Engine
2 YearAlternator
2 YearPump Exchange

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

05Documents & Downloads2

06Shipping & Ordering

This unit ships crated with a shipping weight of 397.00 lbs. Freight is quoted to the delivery address.

Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
