30-Gallon Two Stage Gasoline Combination - AG2-SK14-30ME

MI-T-M AG2-SK14-30ME 30-Gallon Two Stage Gasoline Combination

Available on request

Part number: AG2-SK14-30ME

This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.

Request a quote

Prefer to talk it through? Contact our team.

Trade & volume pricing for repeat orders
Application support from our engineering team
Fast turnaround on quotes and lead times

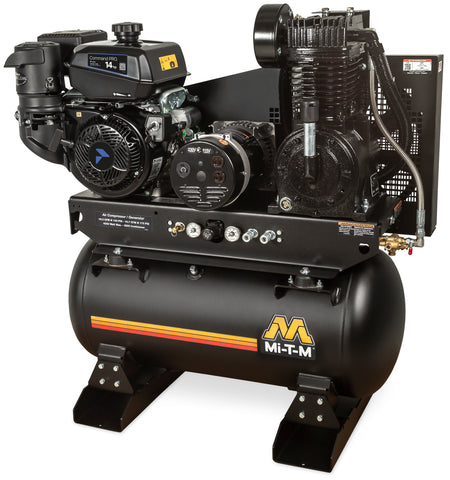

This combination unit provides simultaneous air compression and electrical power for contractors and remodelers. It features a 429cc OHV engine to drive both the two-stage pump and the alternator.

Flow15.7cfm
Pressure175psi
Peak Power4000watts
Engine429cc
Net Weight457lbs

This unit features a 49-state engine and is not for sale in California.

01Features & Build

Compressor Pump
- Cast iron construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight glass
Generator
- Brushless alternator design
- Total harmonic distortion (THD) under 6%
- 100% copper windings
- Includes (2) NEMA 5-20R 120V 20A and (1) NEMA L6-20R 240V 20A receptacles
Frame
- Powder-coated ASME-certified receiver tank
- 3/16-inch base plate for vibration reduction
- Two-piece powder-coated belt guard
- Removable base plate for installation flexibility
Components
- Regulator with dual gauges for tank and outlet pressure
- 150-PSI maximum rated regulator
- Manual drain valve
- 16.5-inch flywheel
- Pilot valve unloader
- Electric start capable (battery, box, and cables not included)

02Specifications10

CFM @ PSI	15.7 @ 175
Alternator Wattage: Max. Output	4000 watts
Alternator Wattage: Cont. with Comp. On-Load	2300 watts
Alternator Wattage: Cont. with Comp. Off-Load	3500 watts
Displacement/ Engine	429cc Rehlko CH440 OHV
Net Weight	457.00 lbs.
Shipping Weight	557.00 lbs.
Length	40.00 in.
Width	24.50 in.
Height	45.00 in.

Specifications are supplied by the manufacturer and are subject to change without notice.

03Optional Accessories4

IX-0001Vibration Isolator Pads. Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
AX-0063Lifting Hook. For easier portability
AX-0070Battery Tray, Box and 2-Foot of Cables. Attaches to engine side of unit
AX-0016Battery, Battery Tray, Box and 2-Foot Cables. Attaches to engine side of unit

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

04Warranty

3 YearRehlko Engine
2 YearAlternator
2 YearPump Exchange

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

05Documents & Downloads2

06Shipping & Ordering

This unit ships crated with a shipping weight of 557.00 lbs. Freight is quoted to the delivery address.

Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
