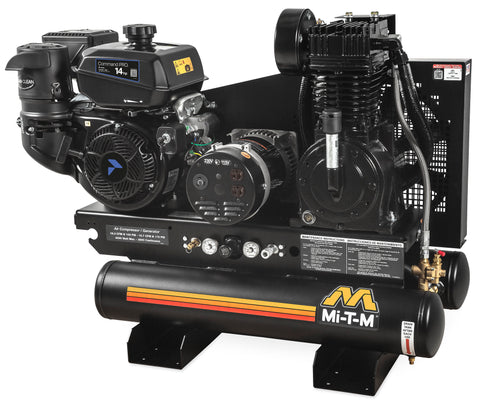

8-Gallon Two Stage Gasoline Combination - AG2-SK14-08M1E

MI-T-M AG2-SK14-08M1E 8-Gallon Two Stage Gasoline Combination

$6,143.00

This gasoline air compressor and generator combination provides dual-utility power for remote jobsites. It features a two-stage pump design for consistent high-pressure air delivery.

CFM @ PSI15.7 @ 175
Alternator Wattage: Max. Output4000 watts
Alternator Wattage: Cont. with Comp. On-Load2300 watts
Alternator Wattage: Cont. with Comp. Off-Load3500 watts

This unit features a 49-state engine and is not for sale in California.

01Features & Build

Compressor Pump
- Cast iron pump construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- High-capacity canister intake filter
- Integrated oil level sight glass
Generator
- Brushless alternator design
- Total harmonic distortion (THD) under 6%
- 100% copper winding construction
- Includes (2) NEMA 5-20R 120V 20A and (1) NEMA L6-20R 240V 20A receptacles
Frame
- Powder-coated twin tank receiver design
- 3/16-inch base plate for vibration dampening
- Two-piece powder-coated belt guard
Components
- Regulator with dual gauges for tank and outlet pressure monitoring
- 150-PSI maximum rated regulator
- Manual drain valves for routine maintenance
- 12 or 16.5-inch flywheel
- Pilot valve unloader
- Electric start system (battery, box, and cables not included)

02Specifications10

CFM @ PSI	15.7 @ 175
Alternator Wattage: Max. Output	4000 watts
Alternator Wattage: Cont. with Comp. On-Load	2300 watts
Alternator Wattage: Cont. with Comp. Off-Load	3500 watts
Displacement/ Engine	429cc Rehlko CH440 OHV
Net Weight	372.00 lbs.
Shipping Weight	472.00 lbs.
Length	44.00 in.
Width	22.00 in.
Height	34.00 in.

Specifications are supplied by the manufacturer and are subject to change without notice.

03Optional Accessories3

AX-0028Lifting Hook. For easier portability
AX-0070Battery Tray, Box and 2-Foot of Cables. Attaches to engine side of unit
AX-0016Battery, Battery Tray, Box and 2-Foot Cables. Attaches to engine side of unit

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

04Warranty

3 YearRehlko Engine
2 YearAlternator
2 YearPump Exchange

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

05Documents & Downloads2

06Shipping & Ordering

This unit ships crated with a shipping weight of 472.00 lbs. Freight is quoted to the delivery address.

Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
