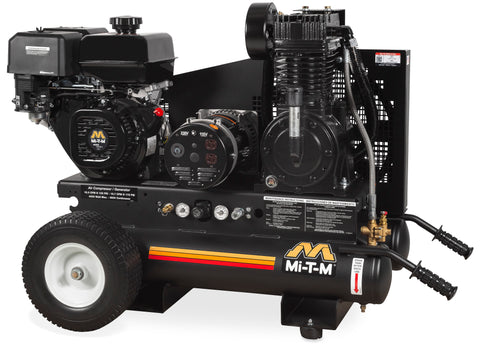

MI-T-M AG2-PM14-08M1E 8-Gallon Two Stage Gasoline Combination

• Compressor Pump

  • Cast iron pump construction
  • Splash lubrication system
  • Stainless-steel braided discharge hose
  • Large canister intake filter
  • Oil level sight glass

• Generator

  • Brushless alternator design
  • Total harmonic distortion (THD) under 6%
  • 100% copper windings
  • Includes (2) NEMA 5-20R 120V 20A and (1) NEMA L6-20R 240V 20A receptacles

• Frame

  • Powder-coated twin tank receivers
  • 3/16-inch base plate for vibration dampening
  • Powder-coated two-piece belt guard
  • 13-inch flat-free tires

• Components

  • Regulator with dual gauges for tank and outlet pressure
  • 150-PSI maximum rated regulator
  • Manual drain valves
  • 12 or 16.5-inch flywheel
  • Pilot valve unloader

Specifications are supplied by the manufacturer and are subject to change without notice.

• AX-0028Lifting Hook. For easier portability
• AX-0075Idle Down. When activated it automatically throttles down engine to conserve fuel, start/stop control set at 145 to 175-PSI
• AX-0070Battery Tray, Box and 2-Foot of Cables. Attaches to engine side of unit
• AX-0016Battery, Battery Tray, Box and 2-Foot Cables. Attaches to engine side of unit
• AX-0095Remote Start/Choke, Sealed Cable. 7-foot wire extension for key switch

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• 3 YearMi-T-M Engine
• 2 YearAlternator
• 2 YearPump Exchange

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

• Product Sheet (PDF)
• Product Manual (PDF)
