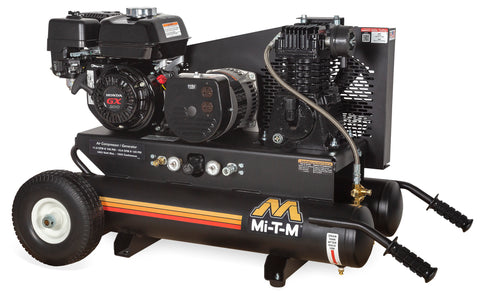

MI-T-M AG1-PM07-08M1 8-Gallon Single Stage Gasoline Combination
This gasoline-powered air compressor and generator combination provides dual-utility power for remote jobsites. It features a 212cc OHV engine designed for consistent performance in demanding environments.
- Airflow10.9cfm
- Pressure125psi
- Engine212cc
- Net Weight207.00lbs
Gasoline models sold in California must be CARB compliant; consult factory for availability.
01Features & Build
-
Compressor Pump
- Cast iron pump construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight glass
-
Generator
- Brushless alternator design
- Total harmonic distortion (THD) under 6%
- 100% copper windings
- Two NEMA 5-20R 120V, 20A receptacles
-
Frame
- Powder-coated twin tank receivers
- 3/16-inch vibration-dampening base plate
- Two-piece powder-coated belt guard
- 10-inch flat-free tires
-
Components
- Regulator with dual gauges for tank and outlet pressure
- Manual drain valves for maintenance
- 12 or 16.5-inch flywheel
- Pilot valve unloader
02Specifications10
| CFM @ PSI | 10.9 @ 125 |
|---|---|
| Alternator Wattage: Max. Output | 1800 watts |
| Alternator Wattage: Cont. with Comp. On-Load | 600 watts |
| Alternator Wattage: Cont. with Comp. Off-Load | 1600 watts |
| Displacement/ Engine | 212cc Mi-T-M OHV |
| Net Weight | 207.00 lbs. |
| Shipping Weight | 257.00 lbs. |
| Length | 44.50 in. |
| Width | 26.00 in. |
| Height | 27.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Warranty
- 3 YearMi-T-M Engine
- 2 YearAlternator
- 2 YearPump Exchange
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
04Documents & Downloads2
05Shipping & Ordering
This unit ships crated with a shipping weight of 257.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
