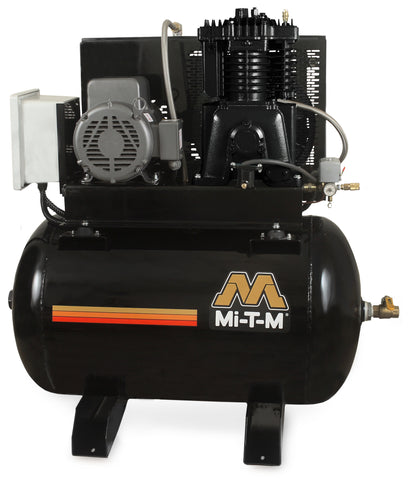

MI-T-M ACS M Series 7.5 HP Simplex Horizontal - 80-Gallon ACS-20375-80HM
This 7.5 HP simplex horizontal air compressor is designed for industrial shop environments requiring consistent high-pressure output. It features a heavy-duty cast iron pump assembly built for continuous duty cycles.
- Flow23.5cfm
- Pressure175psi
- Tank80gallon
- Weight575lbs
01Features & Build
-
Compressor Pump
- Cast iron construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Integrated oil level sight glass
-
Motor
- Industrial low-RPM motor
- Magnetic starter with thermal overload protection
-
Frame
- Powder-coated ASME-certified receiver tank
- 3/16-inch base plate for vibration dampening
- Two-piece powder-coated belt guard
- Removable base plate for installation flexibility
-
Components
- ASME-certified safety valves
- Tank pressure gauge
- Integrated hour meter
- Large diameter flywheel
- Intake filter and silencer
- Tank shut-off valve
- Start/stop controls calibrated for 145 to 175 PSI
-
Models Available
- ACS-23175-80HM: 230V, 1-phase, 31.0A
- ACS-20375-80HM: 200V, 3-phase, 23.0A
- ACS-23375-80HM: 230V, 3-phase, 20.0A
- ACS-46375-80HM: 460V, 3-phase, 10.0A
- ASME Boiler & Pressure Vessel Code U-stamp certification
02Specifications9
| CFM @ PSI | 23.5 @ 175 |
|---|---|
| Pump RPM | 1250 |
| Tank Size | 80-gallon |
| Bolt Down (LxW) | 20.75 x 23.5 in. |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 0.00 lbs. |
| Length | 52.00 in. |
| Width | 26.50 in. |
| Height | 53.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Models & Part Numbers4
- ACS-23175-80HM
- ACS-20375-80HM
- ACS-23375-80HM
- ACS-46375-80HM
04Warranty
- 2 YearPump Exchange
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 679 lbs. Freight costs are quoted to your specific delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
