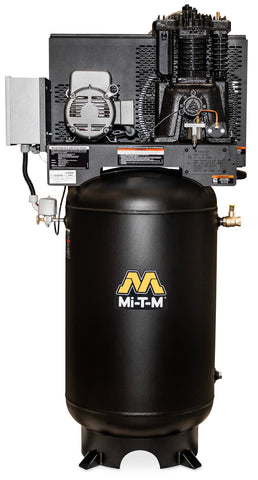

MI-T-M ACS M Series 5.0 HP Simplex Vertical - 80-Gallon ACS-20305-80VM
This 5.0 HP simplex vertical air compressor is designed for industrial shop environments requiring consistent high-pressure air. It features a heavy-duty cast iron pump and an 80-gallon ASME-certified receiver tank.
- Flow18.0cfm
- Pressure175psi
- Tank80gallon
- Net Weight588lbs
01Features & Build
-
Compressor Pump
- Cast iron construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight glass
-
Motor
- Industrial low-RPM motor
- Magnetic starter with thermal overload protection
-
Frame
- Powder-coated ASME-certified receiver tank
- 3/16-inch base plate for vibration reduction
- Powder-coated two-piece belt guard
- Removable base plate for installation flexibility
-
Components
- ASME safety valves
- Tank pressure gauge
- Integrated hour meter
- Large-diameter flywheel
- Intake filter and silencer
- Tank shut-off valve
- Start/stop controls set at 145 to 175 PSI
-
Models Available
- ACS-23105-80VM: 230V, 1Ø, 23.0A
- ACS-20305-80VM: 200V, 3Ø, 16.1A
- ACS-23305-80VM: 230V, 3Ø, 13.8A
- ACS-46305-80VM: 460V, 3Ø, 6.9A
- ASME Boiler & Pressure Vessel Code U-stamp certification
02Specifications9
| CFM @ PSI | 18.0 @ 175 |
|---|---|
| Pump RPM | 860 |
| Tank Size | 80-gallon |
| Bolt Down (LxW) | 15.63 x 15.63 in. |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 0.00 lbs. |
| Length | 38.50 in. |
| Width | 25.00 in. |
| Height | 73.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories1
- IX-0070Unit Shipped Pre-Assembled. Compressor is shipped as a complete unit, no assembly required
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Models & Part Numbers4
- ACS-23105-80VM
- ACS-20305-80VM
- ACS-23305-80VM
- ACS-46305-80VM
05Warranty
- 2 YearPump Exchange
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 695 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
