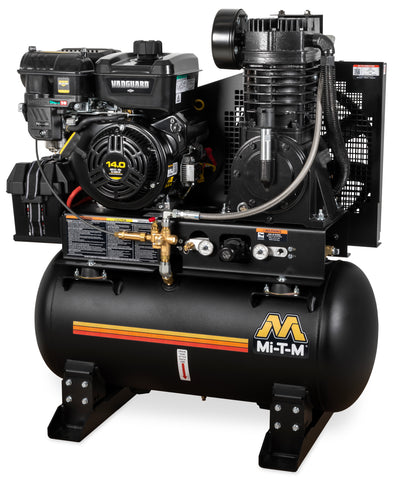

MI-T-M ABS-14V-30H 30-Gallon Two Stage Gasoline
Part number: ABS-14V-30H
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times
Designed for industrial and automotive field service, this unit provides mobile compressed air for demanding jobsites. It features a heavy-duty cast iron pump and a 30-gallon ASME-certified receiver tank.
- Flow29.0cfm
- Pressure175psi
- Engine408cc
- Tank30gallon
- Net Weight476.00lbs
01Features & Build
-
Compressor Pump
- Cast iron construction
- Splash lubrication system
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight glass
- ASME Boiler & Pressure Vessel Code - UM certified
-
Engine
- Electric start system includes battery tray, box, and cables
-
Frame
- Powder-coated ASME receiver tank
- 3/16-inch base plate for vibration reduction
- Powder-coated two-piece belt guard
- Removable base plate for flexible mounting options
02Specifications9
| CFM @ PSI | 29.0 @ 175 |
|---|---|
| Displacement/ Engine | 408cc Vanguard OHV |
| Tank Size | 30-gallon |
| Engine Idle Control | Cable Throttle |
| Net Weight | 476.00 lbs. |
| Shipping Weight | 540.00 lbs. |
| Length | 40.50 in. |
| Width | 23.00 in. |
| Height | 46.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories1
- IX-0001Vibration Isolator Pads. Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Warranty
- 3 YearVanguard Engine
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 540.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
