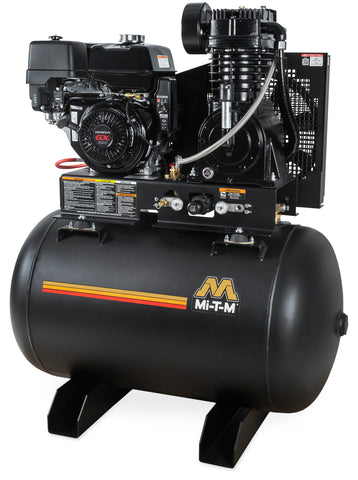

MI-T-M ABS-13H-80H 80-Gallon Two Stage Gasoline

• Compressor Pump

  • Cast iron construction
  • Splash lubrication system
  • Stainless-steel braided discharge hose
  • Large canister intake filter
  • Oil level sight glass

• Engine

  • Electric start (battery and cables not included)

• Frame

  • Powder-coated ASME certified receiver tank
  • 3/16-inch vibration-dampening base plate
  • Powder-coated two-piece belt guard
  • Removable base plate for flexible mounting

• Components

  • Regulator and dual gauges for tank and outlet pressure
  • ASME safety valves
  • 16 1/2-inch flywheel
  • Tank drain valve
  • 1/2-inch discharge port
  • Service truck mounting kit
  • Start/stop control set at 145 to 175-PSI
  • ASME Boiler & Pressure Vessel Code U-certified

Specifications are supplied by the manufacturer and are subject to change without notice.

• AX-0017Electric Start. For easy starting - sealed battery, tray, box and cables included
• AX-0077Battery Box and Tray. Attaches to engine side of unit
• IX-0001Vibration Isolator Pads. Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
• AX-0092Remote Start/Choke, Sealed Cable. 7-foot wire extension for key switch

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• 3 YearHonda Engine
• 2 YearPump Exchange

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

• Product Sheet (PDF)
• Product Manual (PDF)
