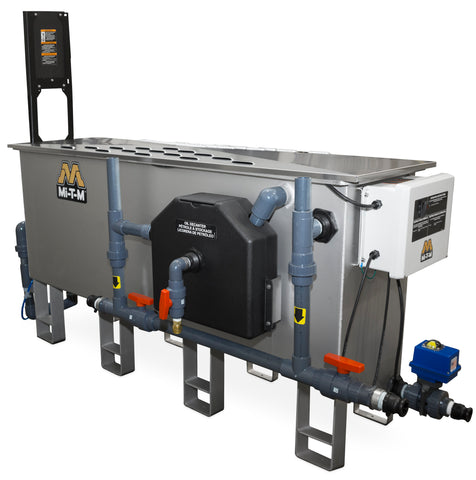

MI-T-M Above-Ground Water/Oil/Solids Separators - WOS-15Series WOS-15-0M10
Part number: WOS-15-0M10
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times
This above-ground separator removes free oils and suspended solids from wash water to facilitate compliant sanitary sewer discharge. It is designed for industrial wash bays and features a 1.0 HP in-line strainer pump for consistent flow management.
- Flow Rate0-15GPM
- Media672sq. ft.
- Capacity170gallon
- Shipping Weight675.00lbs.
01Features & Build
-
System Components
- Integrated corona discharge ozone system
- Oil skimmer and decanter assembly
- Dedicated discharge port
- Oil coalescing media
- 1.0 HP surface-mount sump pump
- 3-stage stainless-steel tank with sloped bottom for solids removal
- ETL listed NEMA-4 rated corrosion-proof control panel
- ETL certified for US and Canada
-
Recommended Applications
- Rental yards and heavy equipment dealerships
- Trucking facilities and rental fleets
- Military bases and shipyards
- Diesel repair and engine manufacturing facilities
- Forklift washing operations
- Aircraft maintenance and restoration
- Municipalities and state DOT facilities
- Oil field operations
-
Available Configurations
- WOS-15-0M10: 120V, 1Ø, 15.0A; 1.0 HP, 120V in-line strainer pump
- WOS-15-0M30: 208-230V, 3Ø, 5.0A; 1.0 HP, 230V in-line strainer pump
-
Pit System Requirements
- Wash water must flow into a properly designed pit system prior to treatment to ensure effective separation and recycling.
02Specifications8
| Flow Rate | 0-15 GPM |
|---|---|
| Coalescing Media | 672 sq. ft. |
| Tank Holding Capacity | 170 gallon |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 675.00 lbs. |
| Length | 91.00 in. |
| Width | 31.00 in. |
| Height | 40.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories3
- WX-0001Continuous Recirculation. Recirculates back to the pit to prevent water from becoming stagnant
- WX-0057230V, Single Phase. Upgrades 120V model to operate at 230V
- WX-0058460V, 3 Phase. Upgrades 208-230V model to operate at 460V
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Models & Part Numbers2
- WOS-15-0M10
- WOS-15-0M30
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 675.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
