Husqvarna : CONCRETE CRUSHER DCR 90 STNDRD Part No. 546424301
Part Number: 546 42 43-01 (546424301)

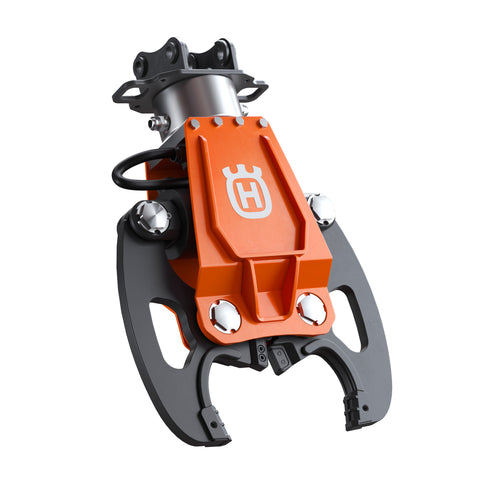

The Husqvarna DCR 90 (Article: 546424301) is a specialized concrete crusher engineered specifically for the DXR 95 demolition robot. As the lightest model in the crusher range, it is optimized to maintain the maneuverability and efficiency of the DXR 95 platform.
This attachment is designed for the controlled demolition of concrete and brick structures. It is suitable for a wide range of applications, including:
- Demolition of staircases and roofing structures
- Precision work in sensitive indoor environments
- General concrete and masonry removal
| Hydraulics | |
|---|---|
| Hydraulic oil flow | 7.9 gal/min |
| Product data | |
| Crushing force | 52,910 lbs |
| Cutting force | 725,692 N |
| Rotation angle | 360 ° |
| Incoming pressure, max | 3,626 psi |
| Operating pressure, max | 3,626 psi |
| Dimensions | |
| Jaw depth | 5 in |
| Jaw opening, min | 2 in |
| Jaw opening, max | 10.6 in |
| Rebar size, max | 0.63 in |
| Product size length | 33.1 in |
| Product size width | 25.7 in |
| Product size height | 8.3 in |
| Weight | 207 lbs |
| Packaging length (Calc) | 47.244 in |
| Packaging width (Calc) | 31.496 in |
| Packaging height (Calc) | 19.685 in |
| Article gross weight (Calc) | 249.122 lbs |
- 725249371 — SCREW EHHM M10x25 8.8 ZPB
- 546713201 — ADAPTER PLATE BRACKET DCR 90
- 546710801 — COVER BACK DCR 90
- 725253671 — SCREW EHHM M12x30 8.8 ZPB
- 579010301 — NUT JAW - FRAME
- 725544701 — SCREW IHSCM ISO 4762 M 8 X 12 8.8 ZPB
- 546710401 — JAW KIT MALE DCR 90
- 546709601 — PIN KIT CYLINDER DCR 90
- 579025801 — SCREW IHSCM M8x14 8.8 ZPB
- 546709301 — JAW KIT FEMALE DCR 90
- 546709201 — COVER FRONT DCR 90
- 546709101 — PIN JAW PIN KIT DCR 90
- 546709401 — CUTTER KIT REINFORCING BAR DCR 90
- 546709701 — CRUSHER TIP KIT DCR 90
- 546717601 — DECAL KIT H-CROWN AND WARNING DCR 90
- 546712801 — SWIVEL KIT DCR 90
- 546712901 — BUSHING KIT DCR 90
- 574243801 — QUICK COUPLING 1/2" FEMALE - ISO 12.5 PLT4.2013.112
- 589016601 — ADAPTER STRAIGHT O: 1 - G: 3/4 DUNLOP 1207959
- 546711301 — HOSE ASSY 1/2" L=1250 90° DCR 90
- 589016401 — ADAPTER STRAIGHT O: 1 - G: 1/2 DUNLOP 1208010
- 546713001 — SEAL KIT SWIVEL DCR 90
- 579009801 — LUBRICATION NIPPLE EDILGRAPPA, ART NO. 1.60.256
- 536907201 — QUICK COUPLING 1/2" MALE
- 546710901 — WEAR PROTECTION HOSE GUARD DCR 90
- 546711401 — HOSE DCR 90
- 546822601 — PLUG M14X20 HEADLESS HEX
- 546712501 — O-RING 13.1 X 2.62 DCR 90
- 546711501 — HOSE DCR 90
- 725549101 — SCREW IHSCM ISO 4762 M 10 X 20 8.8 ZPB
- 546712001 — VALVE RELIEF 260 BAR DCR 90
- 546710201 — HYDRAULIC CYLINDER DCR 90
- 546547101 — SEAL KIT HYDRAULIC CYLINDER DCR 90
- 546710301 — YOKE KIT DCR 90
- 546814301 — CRUSHER PAD DCR 90
- 725546151 — SCREW IHSCM M8x50 12.9 ZPB
