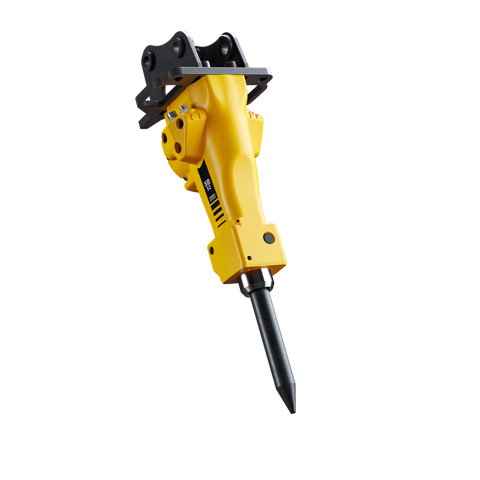

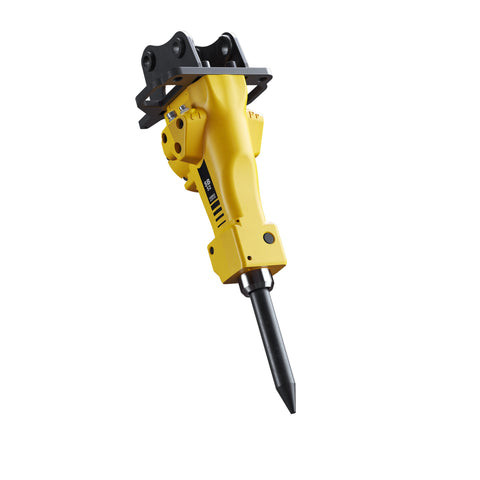

Husqvarna : BREAKER SB 52 Part No. 546221601
Part Number: 546 22 16-01 (546221601)
The Husqvarna SB 52 breaker (Article 546221601) is engineered for controlled demolition tasks where high precision is required. Designed to operate with a lower impact frequency and reduced hitting force compared to the SB 102 model, this unit minimizes the risk of structural damage to underlying reinforcement materials.
This breaker is specifically suited for applications in sensitive environments, including parking garages and bridge maintenance, where maintaining the integrity of the surrounding structure is essential.
| Hydraulics | |
|---|---|
| Hydraulic oil flow | 7.1 gal/min |
| Product data | |
| Impact frequency | 28 Hz |
| Impact energy | 101 Joule |
| Incoming pressure, max | 2,175 psi |
| Operating pressure, max | 2,175 psi |
| Factory option | Standard |
| Dimensions | |
| Product size length | 33 in |
| Product size width | 11.2 in |
| Product size height | 9.8 in |
| Weight | 148 lbs |
| Packaging length (Calc) | 24.803 in |
| Packaging width (Calc) | 12.598 in |
| Packaging height (Calc) | 9.449 in |
| Article gross weight (Calc) | 147.269 lbs |
- 546221601 — BREAKER SB 52
- 574243801 — QUICK COUPLING 1/2" FEMALE - ISO 12.5 PLT4.2013.112
- 589016301 — ADAPTER STRAIGHT O: 13/16 - G: 1/2 DUNLOP 1206958
- 501739206 — WEAR PROTECTION PLASTIC SPIRAL 25mm BLACK L=1000
- 585501104 — HOSE ASSY 13/16", 1/2", 13/16", ORFS L=1030mm
- 589016201 — ADAPTER STRAIGHT O: 13/16 - G: 3/8 DUNLOP 1207576
- 536907201 — QUICK COUPLING 1/2" MALE
- 585484216 — HOSE ASSY 9/16", 1/4", 9/16", ORFS L=1040mm
- 589010901 — ADAPTER STRAIGHT O: 9/16 - G: 1/4 DUNLOP 1206956
- 501739605 — WEAR PROTECTION PLASTIC SPIRAL 20mm BLACK L=1050
- 589010801 — ADAPTER STRAIGHT O: 9/16 - G: 1/8 DUNLOP 1207990
- 536907401 — QUICK COUPLING 1/8" MALE
- 546009601 — ADAPTER PLATE SB 52
- 522487301 — WASHER NORDLOCK NL16
- 510243501 — SCREW IHSCM 16x40 8.8 MC6S
- 546338701 — LOCKING PIN LOCK PIN
- 546338201 — PIN TOOL RETAINER
- 546338801 — PIN LOCK BUFFER
- 546337301 — BUSHING BUSHING COMPLETE
- 546338601 — SEAL SEAL KIT
- 546222501 — MOIL POINT DXR SB 52
- 546222502 — MOIL POINT DXR SB 52 | 1500 mm
- 546222601 — CHISEL DXR SB 52
- 546222701 — WIDE CHISEL DXR SB 52
- 590152504 — BUSHING PAD SB 52
- 583807203 — DUST REDUCTION SB 52/102 | ER 40
- 594059401 — NOZZLE FULL CONE 30° Hansa Engineering WL 1/2 30° 1/8" 316SS
- 546910701 — HOLDER WATER NOZZLE
- 547228901 — NUT ISO 4035 M24 ZnNi, Bright
- 589010201 — ADAPTER L 2x O: 9/16 - O: 9/16 DUNLOP 1207597
- 585484204 — HOSE ASSY 9/16", 1/4", 9/16", ORFS L=345mm
- 585485509 — HOSE ASSY 9/16", 90°, 1/4", 9/16", ORFS L=1280mm
- 582779901 — ADAPTER STRAIGHT O: 9/16 - O: 9/16 Dunlop 1207586
- 582035001 — ADAPTER STRAIGHT Int. G 1/4 - Int. O 9/16 DUNLOP 1216248
- 501720901 — WASHER RUBBER-STEEL 1/4" DUNLOP 1221809
- 531118354 — NIPPLE 18110 with net
- 506384902 — GUN LUBRICATION 400 cc
- 546323502 — GREASE HYDRAULIC BREAKER 12 x 400g TUBE
- 546386101 — GAUGE BUSHING WEAR CONTROLLER
- 546323503 — GREASE HYDRAULIC BREAKER 18KG BUCKET
546222601
Chisel cross
546222701
Chisel wide
546222501
Chisel moil point
546222502
Chisel moil point
590152504
Bushing pad
583807203
Dust reduction kit hydraulic tools
