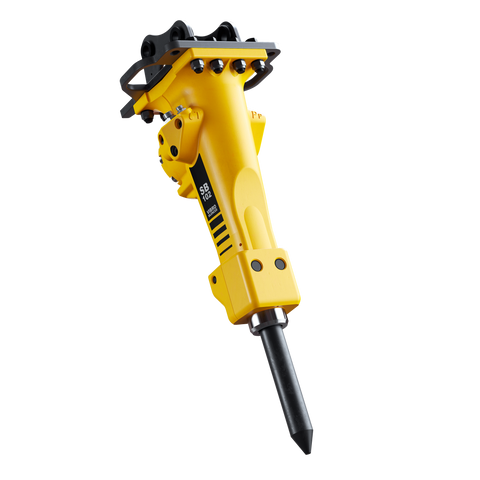

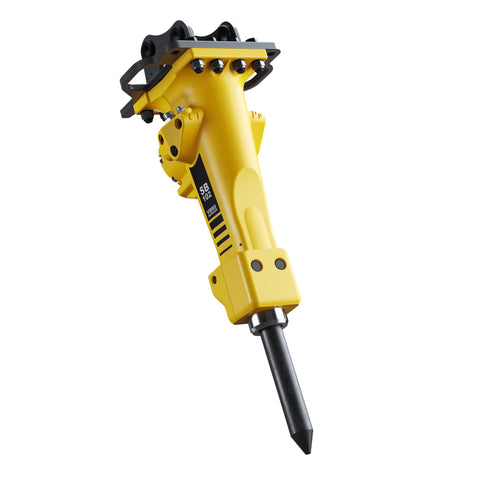

Husqvarna : BREAKER SB 102 Part No. 546220601
Part Number: 546 22 06-01 (546220601)
The Husqvarna SB 102 hydraulic breaker (Article 546220601) is engineered for demanding demolition and construction tasks. This compact, streamlined unit provides increased impact frequency and hitting force compared to the SB 52 model. Designed for professional operators, the SB 102 combines high operational efficiency with a robust construction that ensures long-term reliability and simplified maintenance procedures.
| Hydraulics | |
|---|---|
| Hydraulic oil flow | 9.2 gal/min |
| Product data | |
| Impact frequency | 38 Hz |
| Impact energy | 159 Joule |
| Incoming pressure, max | 2,175 psi |
| Operating pressure, max | 2,175 psi |
| Factory option | Standard |
| Dimensions | |
| Product size length | 37.4 in |
| Product size width | 13.4 in |
| Product size height | 12.3 in |
| Weight | 194 lbs |
| Packaging length (Calc) | 25.197 in |
| Packaging width (Calc) | 12.992 in |
| Packaging height (Calc) | 13.78 in |
| Article gross weight (Calc) | 194.448 lbs |
- 546220601 — BREAKER SB 102
- 574243801 — QUICK COUPLING 1/2" FEMALE - ISO 12.5 PLT4.2013.112
- 589016301 — ADAPTER STRAIGHT O: 13/16 - G: 1/2 DUNLOP 1206958
- 501739206 — WEAR PROTECTION PLASTIC SPIRAL 25mm BLACK L=1000
- 585501104 — HOSE ASSY 13/16", 1/2", 13/16", ORFS L=1030mm
- 536907201 — QUICK COUPLING 1/2" MALE
- 585484216 — HOSE ASSY 9/16", 1/4", 9/16", ORFS L=1040mm
- 589010901 — ADAPTER STRAIGHT O: 9/16 - G: 1/4 DUNLOP 1206956
- 501739605 — WEAR PROTECTION PLASTIC SPIRAL 20mm BLACK L=1050
- 589010801 — ADAPTER STRAIGHT O: 9/16 - G: 1/8 DUNLOP 1207990
- 536907401 — QUICK COUPLING 1/8" MALE
- 546009701 — ADAPTER PLATE SB 102
- 587238201 — SCREW EHHM M16x65 8.8 FZB
- 522487301 — WASHER NORDLOCK NL16
- 522669701 — LOCK NUT M16 NYLOC BLACK CHROMATED
- 546385601 — PIN TOOL RETAINER
- 546385501 — LOCKING PIN LOCK PIN
- 546338801 — PIN LOCK BUFFER
- 546472601 — VALVE RESTRICTOR COMPLETE 3.4 mm, SB 102
- 546385401 — BUSHING BUSHING COMPLETE
- 546385301 — SEAL SEAL KIT
- 546222801 — MOIL POINT SB 102
- 546222802 — MOIL POINT SB 102 | 1500 mm
- 546223001 — CHISEL SB 102
- 546223101 — WIDE CHISEL SB 102
- 590152505 — BUSHING PAD SB 102
- 583807203 — DUST REDUCTION SB 52/102 | ER 40
- 594059401 — NOZZLE FULL CONE 30° Hansa Engineering WL 1/2 30° 1/8" 316SS
- 546910701 — HOLDER WATER NOZZLE
- 547228901 — NUT ISO 4035 M24 ZnNi, Bright
- 589010201 — ADAPTER L 2x O: 9/16 - O: 9/16 DUNLOP 1207597
- 585484204 — HOSE ASSY 9/16", 1/4", 9/16", ORFS L=345mm
- 585485509 — HOSE ASSY 9/16", 90°, 1/4", 9/16", ORFS L=1280mm
- 582779901 — ADAPTER STRAIGHT O: 9/16 - O: 9/16 Dunlop 1207586
- 582035001 — ADAPTER STRAIGHT Int. G 1/4 - Int. O 9/16 DUNLOP 1216248
- 501720901 — WASHER RUBBER-STEEL 1/4" DUNLOP 1221809
- 531118354 — NIPPLE 18110 with net
- 506384902 — GUN LUBRICATION 400 cc
- 546323502 — GREASE HYDRAULIC BREAKER 12 x 400g TUBE
- 546386101 — GAUGE BUSHING WEAR CONTROLLER
- 546323503 — GREASE HYDRAULIC BREAKER 18KG BUCKET
546223001
Chisel cross
546223101
Chisel wide
546222801
Chisel moil point
546222802
Chisel moil point
590152505
Bushing pad
583807203
Dust reduction kit hydraulic tools
