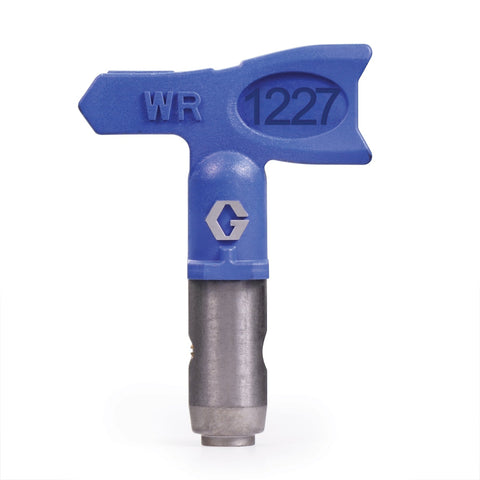

Graco | WR1227 RAC X Wide RAC SwitchTip, 1227
Graco
Model: WR1227
The Reverse-A-Clean (RAC) 1227 RAC X Wide RAC SwitchTip features a 24-inch fan pattern and a 0.027-inch orifice. The tip can be reversed to clear clogs.
-
RAC X - Wide RAC
- The Wide RAC doubles the coverage area in the same amount of time, with an increased flow rate to ensure proper mil thickness.
- Wide RAC tips are designed for high-production, new construction projects that may require larger airless sprayers.
-
Superior Tip Design
- A locking tab secures the tip in the guard.
- The tip snaps into either the spray or reverse position.
- The OneSeal tip installs without tools.
- A solvent seal is available for use with extremely hot solvents.
-
Easy to Identify Tip Size
- Large, raised tip size numbers remain legible even when covered in paint.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955910706 |
| Division | CED |
| Height | .85 IN | 2.159 CM |
| Length | 2.75 IN | 6.985 CM |
| Width | 5.31 IN | 13.487 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .08 LBS | 0.036 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.027 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC X HandTite Tip Guard |
| Maximum Fan Width (in) | 24 |
| Maximum Fan Width (mm) | 610 |
| Tip Type | Airless |
| Pattern Size (in) | 24 |
| Maximum Fan Width (cm) | 61 |
| Maximum Flow Rate (L/min) | 2.91 |
| Minimum Fan Width (in) | 24 |
| Minimum Fan Width (mm) | 610 |
| Pattern Size (mm) | 609.6 |
| Model | RAC X |
| Series | Wide RAC SwitchTip |
