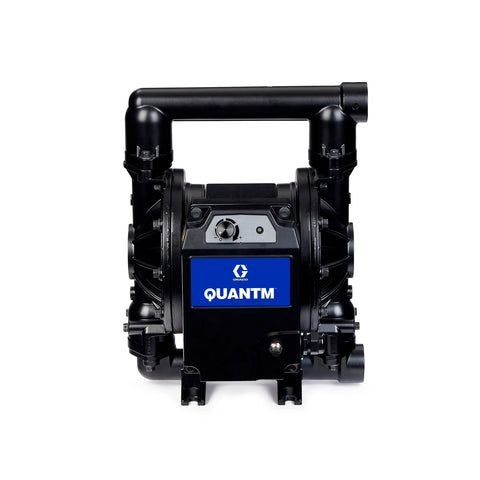

Model: TE80-0143
The QUANTM electric pump offers a revolutionary motor design that reduces operational costs and ensures production line reliability. With multiple fluid path options and materials of construction, it is suitable for most fluid applications. It serves as a reliable replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow and is the only electric diaphragm pump that stalls under pressure, minimizing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter, more efficient, and dependable operation, delivering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve profitability.
The all-aluminum fluid section is designed for abrasion resistance and mild corrosion resistance. This general-purpose electric pump provides up to 8x more continuous torque at low speeds than conventional motors, making it ideal for sump evacuation, petroleum product evacuation (new and waste oils), and solvent evacuation. This pump offers enhanced reliability to minimize downtime, and its plug-and-play design allows for easy integration into production lines without additional investment or infrastructure modifications. Not suitable for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Achieve up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a quick return on investment.
- Quiet operation reduces plant noise and improves employee safety and health.
- Smart pump control enables more accurate flow set points and includes built-in I/O.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 240 VAC 3Ph motor with 15 ft flying leads.
- CID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval.
-
Materials of Construction
- Aluminum fluid section with NPT end port.
- Internal components include 316 stainless steel seat, Santoprene ball, Santoprene diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946687170 |
| Division | PRO |
| Height | 34 IN | 86.360 CM |
| Length | 32 IN | 81.280 CM |
| Width | 19 IN | 48.260 CM |
| Volume | 11.952 FT3 | 0.338 M3 |
| Shipping Weight | 121 LBS | 54.885 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 7.5 |
| Maximum Flow Rate (L/min) | 303 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.19 |
| Maximum Solid Size (mm) | 4.8 |
| Model | QUANTM |
| Overall Height (in) | 19.6 |
| Series | i80 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | Aluminum, End Port, NPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| configuration_code | QTD-ALFC3SSSPSPPTA100 |
| Weight (kg) | 32.2 |
