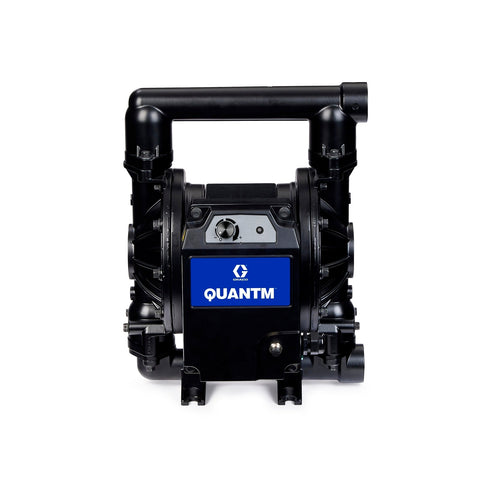

Graco | TE80-0112 QUANTM i80, 1.5"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, SP Seat, TP Ball, TP Diaphragm
Graco
Model: TE80-0112
The QUANTM electric pump features a revolutionary electric motor design for reduced operational costs and reliable production line performance. With multiple fluid path options and materials of construction, it is suitable for most fluid applications. It serves as a reliable drop-in replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow. It is the only electric diaphragm pump on the market that stalls under pressure, reducing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter operation, increased efficiency, and enhanced dependability, offering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve profitability.
The all-aluminum fluid section offers abrasion resistance and mild corrosion resistance. This general-purpose electric pump provides up to 8x more continuous torque at low speeds than conventional motors, making it an energy-saving solution for sump evacuation, petroleum product evacuation (new and waste oils), and solvent evacuation. This pump enhances reliability to minimize downtime. Its plug-and-play design allows for easy integration into any production line without additional investment or infrastructure changes. Not suitable for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- The compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Achieve up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a quick investment payback.
- Quiet operation reduces plant noise, improving employee safety and health.
- Smart pump control offers more accurate flow set points and includes built-in I/O.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 240 VAC 1Ph motor with a 15 ft cord and IEC 60320-C20 plug.
- Non-hazardous.
-
Materials of Construction
- Aluminum fluid section with NPT end port.
- Internal components include Santoprene seat, TPE (Hytrel) ball, TPE (Hytrel) diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946686968 |
| Division | PRO |
| Height | 28 IN | 71.120 CM |
| Length | 20 IN | 50.800 CM |
| Width | 25 IN | 63.500 CM |
| Volume | 8.102 FT3 | 0.229 M3 |
| Shipping Weight | 104 LBS | 47.174 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 15 |
| Maximum Flow Rate (L/min) | 303 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.19 |
| Maximum Solid Size (mm) | 4.8 |
| Model | QUANTM |
| Overall Height (in) | 19.6 |
| Series | i80 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Minimum Fluid Operating Temperature (°C) | -29 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Minimum Fluid Operating Temperature (°F) | -20 |
| Fluid Section | Aluminum, End Port, NPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| configuration_code | QTD-ALFC2SPTPTPPTA100 |
| Weight (kg) | 32.2 |
