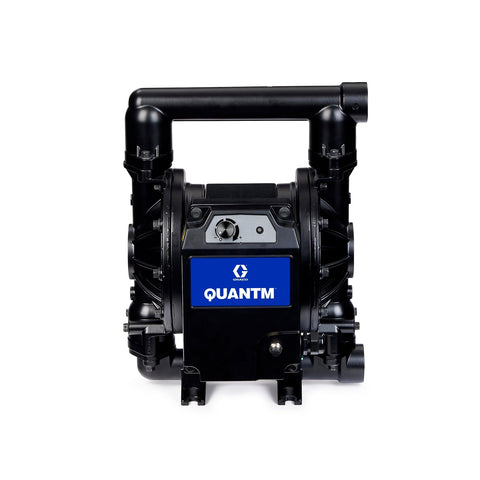

Model: TE80-0020
The QUANTM electric pump offers a revolutionary motor design to reduce operational costs and ensure production line reliability. With various fluid path options and materials, it is suitable for most fluid applications, serving as a reliable replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow and is the only electric diaphragm pump that stalls under pressure, preventing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter, more efficient, and dependable operation, delivering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pumping strategy and improve profitability.
The all-aluminum fluid section is designed for abrasion resistance and mild corrosion resistance. This general-purpose electric pump provides up to 8x more continuous torque at low speeds than conventional motors, making it an energy-efficient solution for sump evacuation, petroleum product evacuation (new and waste oils), and solvent evacuation. This pump enhances reliability to minimize downtime, and its plug-and-play design allows for easy integration into existing production lines without additional investment or infrastructure changes. Not suitable for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Achieves up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a rapid return on investment.
- Operates quietly, reducing plant noise and improving employee safety and health.
- Smart pump control offers more precise flow set points and integrated I/O capabilities.
-
Efficient Electric Motor
- Features a powder-coated aluminum electric drive.
- Includes a 240 VAC 3Ph motor with a 15 ft cord and NEMA L15-20 plug.
- Design is non-hazardous.
-
Materials of Construction
- Aluminum fluid section with NPT end port.
- Internal components include a 316 stainless steel seat, 440C stainless steel ball, PTFE/Santoprene 2-piece diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946685947 |
| Division | PRO |
| Height | 33.5 IN | 85.090 CM |
| Length | 20 IN | 50.800 CM |
| Width | 32.5 IN | 82.550 CM |
| Volume | 12.587 FT3 | 0.356 M3 |
| Shipping Weight | 120 LBS | 54.431 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 7.5 |
| Maximum Flow Rate (L/min) | 303 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.19 |
| Maximum Solid Size (mm) | 4.8 |
| Model | QUANTM |
| Overall Height (in) | 19.6 |
| Series | i80 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | Aluminum, End Port, NPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| configuration_code | QTD-ALFC1SSSDPSPTA100 |
| Weight (kg) | 32.2 |
