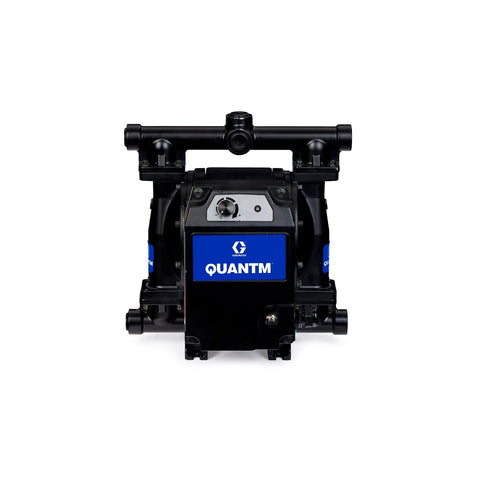

Graco | TE30-0436 QUANTM i30, 1"BSPT, Aluminum Electric Diaphragm Pump, 240 VAC 1Ph, AL Center, SS Seat, SS Ball, PS Diaphragm

Graco

Model: TE30-0436

The QUANTM electric pump offers a significant advancement in pump technology. Its innovative electric motor design reduces operational costs and ensures the reliability needed to maintain continuous production. With various fluid path options and material compositions, the QUANTM is suitable for most fluid applications. It serves as a dependable, direct replacement for less efficient pneumatic pumps or as an ideal component for new installations.

The pump features a unique self-priming, seal-less design that provides consistent, smooth flow. It is the only electric diaphragm pump on the market capable of stalling under pressure, which minimizes downtime caused by pump failures due to clogged lines or closed valves. The QUANTM is engineered for quieter operation, enhanced efficiency, and exceptional dependability, delivering energy savings that contribute to sustainability goals. Consider upgrading your pumping strategy to the QUANTM electric pump to improve your operational efficiency and profitability.

The all-aluminum fluid section is designed for abrasion resistance and offers mild corrosion resistance. This general-purpose electric pump utilizes an energy-saving motor with up to 8 times more continuous torque at low speeds than conventional motors. It is well-suited for sump evacuation, the removal of petroleum products (new and waste oils), and the evacuation of solvents. This pump provides increased reliability to reduce downtime, and its plug-and-play design allows for easy integration into existing production lines without requiring additional investment or infrastructure modifications. Not suitable for use with halogenated hydrocarbons.

• Revolutionary Design
  • Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
  • The compact and efficient electric drive eliminates the need for a gearbox, resulting in a footprint comparable to a pneumatic diaphragm pump.
  • Achieve up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and offering a rapid return on investment.
  • Quiet operation contributes to a reduction in plant noise levels, enhancing employee safety and well-being.
  • Smart pump control enables more precise flow set points and includes built-in I/O functionality.
• Efficient Electric Motor
  • Features a powder-coated aluminum electric drive.
  • Equipped with a 240 VAC 1Ph motor with 15 ft flying leads.
  • Holds ATEX Ex II 2 G EX dh IIB T4 Gb hazardous location approval.
• Materials of Construction
  • Aluminum fluid section with BSPT end port.
  • Internal components include 316 stainless steel seat, 316 stainless steel ball, PTFE/Santoprene 2-piece diaphragm, and PTFE manifold o-ring.
