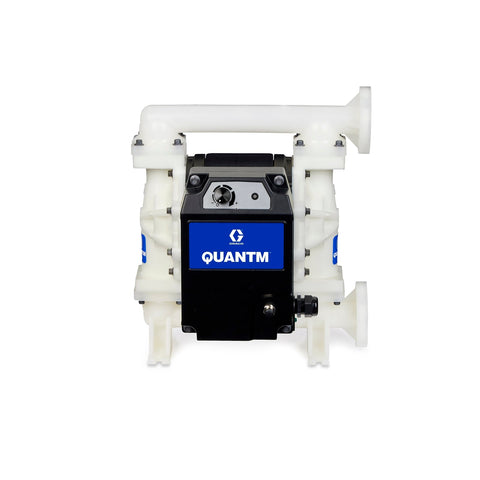

Model: TE30-0109
The QUANTM electric pump offers reduced operational costs and enhanced reliability for production lines. It features multiple fluid path options and materials of construction, making it suitable for most fluid applications. QUANTM serves as a reliable replacement for less efficient pneumatic pumps or a suitable option for new installations. Its self-priming, seal-less design provides smooth, steady flow and is the only electric diaphragm pump on the market that stalls under pressure, minimizing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter, more efficient, and dependable operation, delivering energy savings that support sustainability goals. Converting to a QUANTM electric pump can improve your operational strategy and profitability.
This electric pump is designed with a chemical-resistant polypropylene fluid section for high corrosion resistance. It is built for efficient fluid transfer applications involving most chemicals and detergents, sump evacuation, and high and low pH materials. With up to 8x more continuous torque at low speeds than conventional motors, this pump offers increased reliability and reduced downtime. Its plug-and-play design allows for easy integration into existing production lines without additional investment or infrastructure changes.
-
Revolutionary Design
- Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- The compact and efficient electric drive eliminates the gearbox, providing a footprint comparable to a pneumatic diaphragm pump.
- Achieve up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and offering a quick return on investment.
- Quiet operation reduces plant noise and improves employee safety and health.
- Smart pump control offers more accurate flow set points and includes built-in I/O.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 120 VAC 1Ph motor with a 15 ft cord and NEMA 5-15 plug.
- Non-hazardous.
-
Materials of Construction
- Polypropylene fluid section with an end flange.
- Internal components include 316 stainless steel seat, 316 stainless steel ball, PTFE/Santoprene 2-piece diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946277616 |
| Division | PRO |
| Height | 19 IN | 48.260 CM |
| Length | 18 IN | 45.720 CM |
| Width | 15.5 IN | 39.370 CM |
| Volume | 3.063 FT3 | 0.087 M3 |
| Shipping Weight | 73 LBS | 33.112 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Gender | Flange |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Flange |
| Maximum Amperage (A) | 12 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.2 |
| Model | QUANTM |
| Overall Height (in) | 17.8 |
| Series | i30 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Minimum Fluid Operating Temperature (°C) | 0 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Minimum Fluid Operating Temperature (°F) | 32 |
| Fluid Section | Polypropylene, End Flange |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| configuration_code | QTC-PPFC5SSSSPSPTP200 |
| Weight (kg) | 27.7 |
