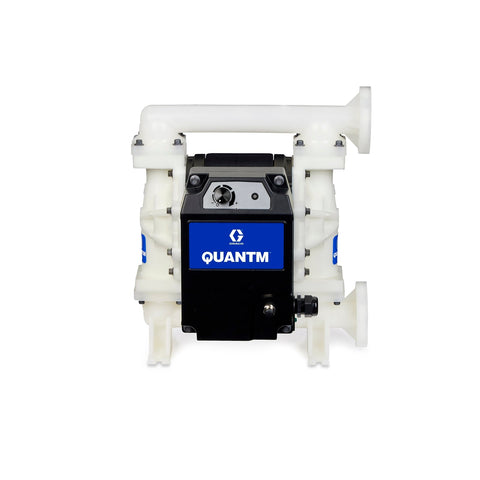

Graco | TE30-0106 QUANTM i30, 1"Flange, Polypropylene Electric Diaphragm Pump, 120 VAC 1Ph, AL Center, SS Seat, PT Ball, PS Diaphragm

Graco

Model: TE30-0106

The QUANTM electric pump features a revolutionary electric motor design engineered to reduce operational costs and ensure production line reliability. With multiple fluid path options and materials of construction, it is suitable for most fluid applications. This pump serves as a highly reliable drop-in replacement for less efficient pneumatic pumps or for new installations. Its unique self-priming, seal-less design provides smooth, steady flow. It is the only electric diaphragm pump on the market that stalls under pressure, minimizing downtime caused by clogged lines or closed valves. The QUANTM is designed for quieter operation, increased efficiency, and ultra-dependability, offering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve profitability.

This electric pump is constructed with a chemical-resistant polypropylene fluid section, offering high corrosion resistance. It is designed for efficient fluid transfer applications involving most chemicals and detergents, sump evacuation, and materials with high and low pH. The pump delivers up to 8x more continuous torque at low speeds than conventional motors, ensuring high reliability and minimal downtime. Its plug-and-play design allows for easy integration into existing production lines without additional investment or infrastructure changes.

• Revolutionary Design
  • Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
  • The compact and efficient electric drive eliminates the gearbox, resulting in a footprint comparable to a pneumatic diaphragm pump.
  • Offers up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a quick return on investment.
  • Quiet operation reduces plant noise levels, contributing to improved employee safety and health.
  • Smart pump control enables more accurate flow set points and includes built-in I/O.
• Efficient Electric Motor
  • Features a powder-coated aluminum electric drive.
  • Equipped with a 120 VAC 1Ph motor, a 15 ft cord, and a NEMA 5-15 plug.
  • Classified as non-hazardous.
• Materials of Construction
  • Polypropylene fluid section with an end flange.
  • Internal components include 316 stainless steel seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm, and a PTFE manifold o-ring.

Operational Specifications

Technical Specifications
