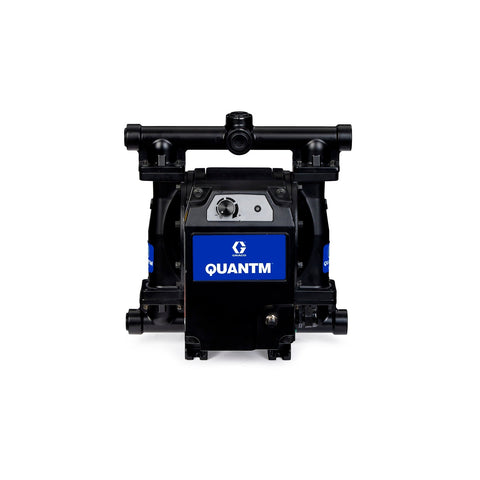

Model: TE30-0094
The QUANTM electric pump offers a significant advancement in pump technology, designed to reduce operational costs and ensure continuous production line operation. It features a revolutionary electric motor and multiple fluid path options, making it suitable for most fluid applications. QUANTM serves as a reliable replacement for less efficient pneumatic pumps and is also ideal for new installations. Its unique self-priming, seal-less design provides smooth, steady flow and is the only electric diaphragm pump capable of stalling under pressure. This feature minimizes downtime caused by clogged lines or closed valves. The QUANTM is engineered for quieter operation, increased efficiency, and exceptional dependability, contributing to energy savings and enhanced sustainability.
The all-aluminum fluid section is constructed for abrasion resistance and mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-efficient solution for sump evacuation, petroleum product evacuation (new and waste oils), and solvent evacuation. Its high reliability minimizes downtime, and the plug-and-play design allows for easy integration into existing production lines without additional investment or infrastructure changes. This pump is not intended for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, resulting in a footprint comparable to a pneumatic diaphragm pump.
- Achieves up to an 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and offering a rapid investment payback.
- Operates quietly, reducing plant noise and improving employee safety and health.
- Smart pump control offers more precise flow set points and integrated I/O capabilities.
-
Efficient Electric Motor
- Features a powder-coated aluminum electric drive.
- Equipped with a 120 VAC 1Ph motor, a 15 ft cord, and a NEMA 5-15 plug.
- Classified as non-hazardous.
-
Materials of Construction
- Aluminum fluid section with NPT end port.
- Internal components include acetal seat, Santoprene ball, Santoprene diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946277098 |
| Division | PRO |
| Height | 0 IN | 0.000 CM |
| Length | 0 IN | 0.000 CM |
| Width | 0 IN | 0.000 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | 0 LBS | 0.000 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 12 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.2 |
| Model | QUANTM |
| Overall Height (in) | 15.94 |
| Series | i30 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | Aluminum, End Port, NPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| configuration_code | QTC-ALFC5ACSPSPPTA100 |
