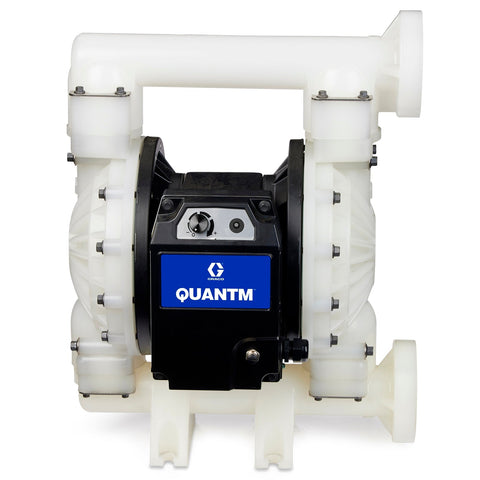

Graco | TE120-0014 QUANTM i120, 2"Flange, Polypropylene Electric Diaphragm Pump, 200-240 V, AL Center, PP Seat, SP Ball, SP Diaphragm

Graco

Model: TE120-0014

The QUANTM electric pump offers a significant advancement over traditional pumps. Its innovative electric motor design reduces operational costs and ensures consistent production line uptime. With various fluid path options and materials of construction, QUANTM is suitable for most fluid applications. It serves as a reliable, direct replacement for less efficient pneumatic pumps or for new installations. The pump's unique self-priming, seal-less design provides smooth, steady flow. It is the only electric diaphragm pump on the market that stalls under pressure, minimizing downtime caused by clogged lines or closed valves. The QUANTM is engineered for quieter operation, increased efficiency, and exceptional dependability, contributing to energy savings and enhanced sustainability.

Featuring a chemical-resistant polypropylene fluid section for high corrosion resistance, this electric pump efficiently handles fluid transfer applications involving most chemicals and detergents, sump evacuation, and materials with high and low pH. With up to 8x more continuous torque at low speeds than conventional motors, this pump enhances reliability and reduces downtime. Its plug-and-play design allows for easy integration into existing production lines without additional investment or infrastructure modifications.

• Revolutionary Design
  • Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
  • The compact and efficient electric drive eliminates the gearbox, resulting in a footprint comparable to a pneumatic diaphragm pump.
  • Offers up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a rapid return on investment.
  • Quiet operation reduces plant noise levels, improving employee safety and health.
  • Smart pump control enables more accurate flow set points and includes built-in I/O.
• Efficient Electric Motor
  • Features a powder-coated aluminum electric drive.
  • Equipped with a 240 VAC 3Ph motor, a 15 ft cord, and a NEMA L15-20 plug.
  • Classified as non-hazardous.
• Materials of Construction
  • Polypropylene fluid section with an end flange.
  • Internal components include a polypropylene seat, Santoprene ball, Santoprene diaphragm, and PTFE manifold o-ring.

Operational Specifications

Technical Specifications
