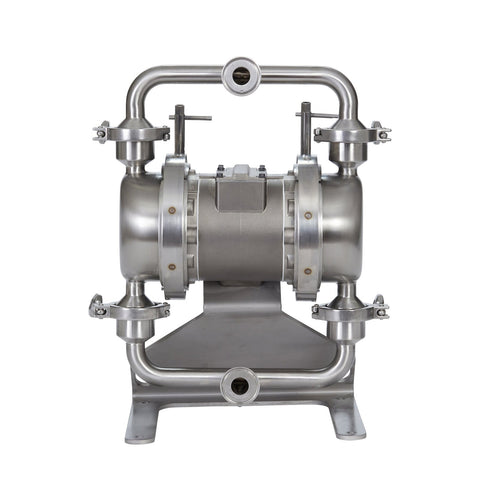

Graco | SP1B.0006 SaniForce 1040, 1" HS SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO Diaphragms
Graco
Model: SP1B.0006
Graco's SaniForce 1040 is a 1-inch air-operated double diaphragm (AODD) pump designed for hygienic fluid transfer. It delivers flow rates up to 41 gpm and features a quick knock-down design for simplified cleaning and a low cost of ownership.
This pump is suitable for food processing and personal care industries. Common applications include high-volume evacuation of liquid concentrates from holding tanks and repackaging fluids from original containers to smaller ones. It can handle products such as flavorings, purees, sauces, and other low to medium viscosity materials.
- 1-inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar).
- Seal-less diaphragm pump design prevents leaks and failures caused by running dry.
- Graco double diaphragm pumps stall under pressure, protecting against failures from clogged lines or closed valves.
- Externally serviceable air valves provide high efficiency and minimize downtime.
- Features inlet and outlet tri-clamp connections for a quick knockdown design, facilitating easy cleaning and maintenance.
- PTFE/EPDM overmolded diaphragm design reduces areas where bacteria can accumulate, enhancing wear resistance and diaphragm lifespan without an exposed diaphragm plate on the fluid side.
- Constructed with a 316L stainless steel wetted section.
- All fluid contact materials comply with FDA regulations and United States Code of Federal Regulations (CFR) Title 21.
- Capable of passing solids up to 0.42 inches (10.7 mm).
- Single-piece manifolds reduce the number of tri-clamps and gaskets, creating a cleaner fluid path and design.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652877653 |
| Division | PRO |
| Height | 29 IN | 73.660 CM |
| Length | 25 IN | 63.500 CM |
| Width | 19 IN | 48.260 CM |
| Volume | 7.972 FT3 | 0.226 M3 |
| Shipping Weight | 67 LBS | 30.391 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| For Use With | Food, Personal Care |
| Maximum Air Consumption (SCFM) | 65 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 800 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 240 |
| Maximum Flow Rate (L/min) | 155 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Fluid Pressure (kPa) | 800 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (cm) | 1.07 |
| Maximum Solid Size (in) | 0.42 |
| Maximum Solid Size (mm) | 10.7 |
| Model | SaniForce |
| Overall Height (in) | 19.3 |
| Series | 1040 HS |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Surface Finish | 32 Ra |
| compressor_required | Yes |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25.4 |
| Tri-Clamp Connection Size | 1-inch |
| fluid_passage_size_cm | 2.54 |
| configuration_code | 1040HS.PS01ASSASSPTPOEP21 |
