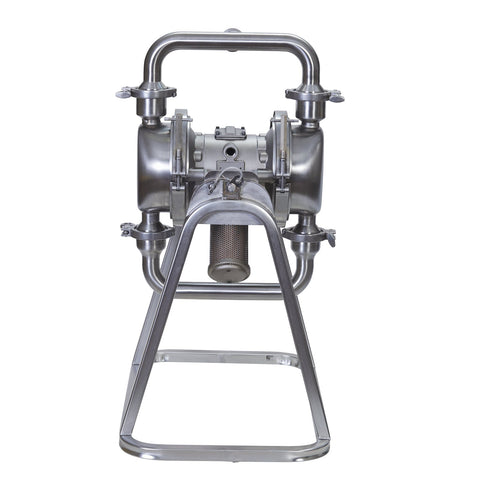

Graco | SP15.0028 SaniForce 1590, 1.5" HS SST Pneumatic Diaphragm Pump, SS Center, SS Seats, SP Balls, SP Diaphragms
Graco
Model: SP15.0028
The Graco SaniForce 1590 is a 1.5-inch air-operated double diaphragm (AODD) pump designed for hygienic fluid transfer. It delivers flow rates up to 105 gpm and features a quick knock-down design for simplified cleaning and a low cost of ownership.
This pump is suitable for food processing and personal care applications. It is commonly used for high-volume evacuation of liquid concentrates from holding vessels or for repackaging fluids into smaller containers. It can handle products such as flavorings, purees, sauces, and other low to medium viscosity materials.
- 1.5-inch sanitary pump with flow rates up to 105 gpm (397.5 lpm) and pressures up to 120 psi (8 bar).
- Seal-less diaphragm pump design prevents leaks and failures caused by running dry.
- Graco double diaphragm pumps stall under pressure, preventing failures from clogged lines or closed valves.
- Externally serviceable air valves provide efficient operation and reduce downtime.
- Equipped with inlet and outlet tri-clamp connections for a quick knockdown design, facilitating easy cleaning and swift maintenance.
- Optional leak sensors alert users to potential process compromises.
- Features a 316L stainless steel wetted section.
- All fluid contact materials comply with FDA regulations and United States Code of Federal Regulations (CFR) Title 21.
- Capable of passing solids up to 0.5 inches (12.7 mm).
- Single-piece manifolds reduce the number of tri-clamps and gaskets, creating a cleaner fluid path and design.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652877059 |
| Division | PRO |
| Height | 0 IN | 0.000 CM |
| Length | 0 IN | 0.000 CM |
| Width | 0 IN | 0.000 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | 0 LBS | 0.000 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| For Use With | Food, Personal Care |
| Maximum Air Consumption (SCFM) | 150 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 800 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 165 |
| Maximum Flow Rate (L/min) | 397.5 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Fluid Pressure (kPa) | 800 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (cm) | 1.27 |
| Maximum Solid Size (in) | 0.5 |
| Maximum Solid Size (mm) | 12.7 |
| Model | SaniForce |
| Overall Height (in) | 32.6 |
| Series | 1590 HS |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Surface Finish | 32 Ra |
| compressor_required | Yes |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| Tri-Clamp Connection Size | 1.5-inch |
| fluid_passage_size_cm | 3.8 |
| configuration_code | 1590HS.PS01ASSASSSPSPEP31 |
