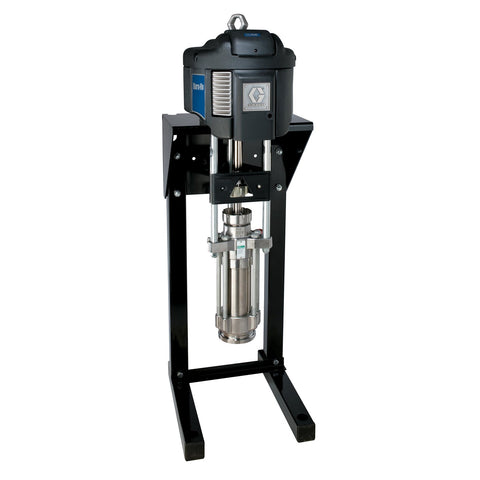

Graco | P25MSE Dura-Flo NXT 2-Ball Piston Pump, 25:1, Low Noise Exhaust Motor, DataTrak, SST, 4 Leather / 1 PTFE Packings
Graco
Model: P25MSE
Graco's Dura-Flo pumps, featuring NXT technology, offer consistent and easily managed material delivery. These durable pumps are suitable for supply applications and utilize an NXT motor. They can now achieve higher pressure ranges while maintaining flow.
- Positive displacement, 2-ball piston design ensures uniform and controllable delivery.
- High pump pressure and flow performance accommodate a wide variety of paints and coatings.
- Enhanced serviceability with fewer components leads to quicker repairs and reduced ownership costs.
- Monitor and protect your pump using DataTrak.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955186163 |
| Division | IPD |
| Height | 18 IN | 45.720 CM |
| Length | 50.4 IN | 128.016 CM |
| Width | 15.6 IN | 39.624 CM |
| Volume | 8.19 FT3 | 0.232 M3 |
| Shipping Weight | 125 LBS | 56.699 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Female |
| Includes | Stainless Steel Pump, Low Noise Exhaust Motor, DataTrak Monitor, 4 Leather/1 PTFE Packings |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (L/min) | 17.41 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Working Pressure (bar) | 328 |
| Maximum Working Pressure (kPa) | 32800 |
| Maximum Working Pressure (psi) | 4750 |
| Model | Dura-Flo |
| Mount Type | Wall or Stand Mount |
| Portable | Non-Portable |
| Series | 2-Ball |
| Maximum Working Pressure (MPa) | 32.8 |
