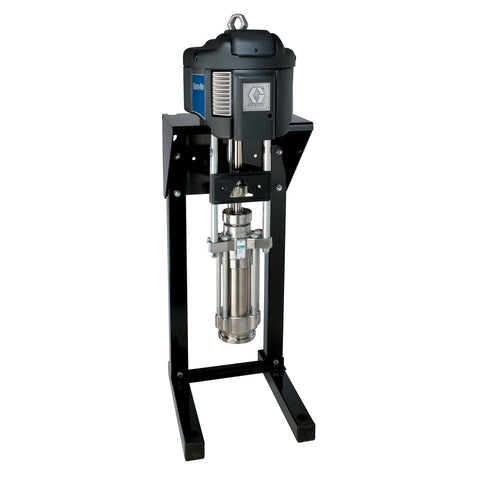

Graco | P23DCD Dura-Flo NXT 2-Ball Piston Pump, 23:1, De-Icing Exhaust Motor, CS, 3 PTFE / 2 Leather Packings
Graco
Model: P23DCD
Graco's Dura-Flo pumps, featuring NXT technology, offer consistent and easily managed material delivery. These durable pumps are suitable for supply applications and utilize an NXT motor. They can now achieve higher pressure ranges while maintaining flow.
- Positive displacement, 2-ball piston design ensures uniform and controllable delivery.
- High pump pressure and flow performance accommodate a wide variety of paints and coatings.
- Enhanced serviceability with fewer components leads to quicker repairs and reduced ownership costs.
- Monitor and protect your pump using DataTrak.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955186309 |
| Division | IPD |
| Height | 20.4 IN | 51.816 CM |
| Length | 50.4 IN | 128.016 CM |
| Width | 16.8 IN | 42.672 CM |
| Volume | 10 FT3 | 0.283 M3 |
| Shipping Weight | 170 LBS | 77.111 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Female |
| Includes | Carbon Steel Pump, De-Icing Exhaust Motor, 3 PTFE/2 Leather Packings |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (L/min) | 34.83 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Working Pressure (bar) | 168 |
| Maximum Working Pressure (kPa) | 16800 |
| Maximum Working Pressure (psi) | 2430 |
| Model | Dura-Flo |
| Mount Type | Wall or Stand Mount |
| Portable | Non-Portable |
| Series | 2-Ball |
| Maximum Working Pressure (MPa) | 16.8 |
