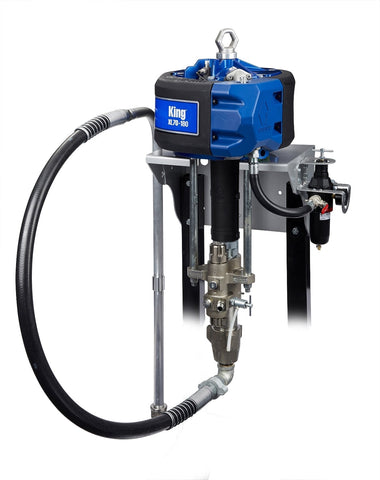

Graco | K70FW1 King 70:1 Sprayer, Integrated Filter, Wall Mount, Air Controls, Siphon Kit, XTR-7+, 50 ft (15 m) Hose, 6 ft (1.8 m) Whip
Graco
Model: K70FW1
The Graco King pneumatic airless sprayers are powerful machines designed for protective coatings, offering high volume and high pressure. They provide unprecedented applicator output, pressure ratios, and pumping capacities. These units are built to withstand harsh environments and handle demanding protective coating and corrosion control applications. With 10 available ratios, there is a sprayer suited for your specific application's pressure and flow requirements.
These are superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing, and protective coatings.
-
Simple Maintenance
- This air motor features 50% fewer parts than the NXT valve, simplifying maintenance and troubleshooting.
- All motor parts are easily accessible for straightforward maintenance.
-
Improved Icing Performance
- Newly designed poppets and external pilot lines minimize pilot valve freezing, preventing immediate stops.
- Icing potential has been reduced by up to 70%.
-
Less Pulsation
- With over 145% higher exhaust capacity in the air valve, you will experience faster, smoother changeovers.
- This eliminates pattern "winks" for a noticeable improvement.
-
New MaxLife Pump Lowers
- Featuring improved sealing and strength with enhanced edge loading and seven throat packings instead of five, the new MaxLife pump Lowers are built for demanding jobs, offering exceptional durability and longevity.
-
New Air Motor
- Graco’s powerful new air motor supports multi-gun capabilities, allowing you to use multiple guns with minimal pulsation. A new manifold is designed for simplified multi-gun installation.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652706755 |
| Division | CED |
Technical Specifications
| Specification | Value |
|---|---|
| Convertible | Non-Convertible |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Size (mm) | 31.75 |
| Fluid Outlet Size (mm) | 12.7 |
| Frame Configuration | Wall Mount |
| Includes | Pump, Lower, Motor, Standard Filter, Wall Mount Bracket, Air Controls, Siphon Kit, Hose, Gun |
| Maximum Sound Pressure Level (dB(A)) | 81.48 |
| Maximum Tip Size (in) | Variable |
| Maximum Working Pressure (psi) | 7250 |
| Maximum Working Pressure (kPa) | 50000 |
| Maximum Working Pressure (MPa) | 50 |
| Model | King |
| Maximum Working Pressure (bar) | 500 |
| Weight (kg) | 95 |
| Pump Mount Type | Wall Mount |
| Pump Rod Type | MaxLife |
| Number of Guns | 1 |
| Gun Model | XTR-7 |
| Product Type | Single Leg |
| Material Application | Paints, Primers |
| Maximum Air Inlet Pressure (psi) | 150 |
| Stroke Length (in) | 4.75 |
| Lower Type | Integrated Filter |
| Package Pressure Ratio (Motor/Lower) | 70:1 XL6500 / 180cc |
| Approved for Hazardous Locations | Yes |
