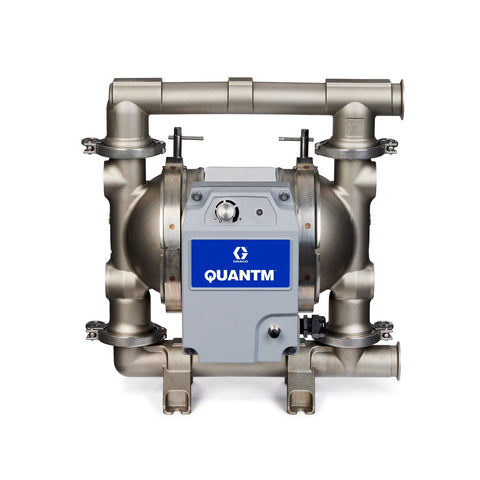

Graco | HE80-0033 QUANTM h80, 1.5" FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, EP Ball, EO Diaphragm
Graco
Model: HE80-0033
The QUANTM electric pump features a revolutionary electric motor design engineered to reduce operational costs and ensure reliable production line operation. With multiple fluid path options and various materials of construction, it is suitable for most fluid applications. It serves as a highly reliable replacement for less efficient pneumatic pumps or for new installations. Its unique self-priming, seal-less design provides smooth, steady flow. This electric diaphragm pump is the only one on the market that stalls under pressure, minimizing downtime caused by clogged lines or closed valves. The QUANTM is designed for quieter operation, increased efficiency, and enhanced dependability, offering energy savings that contribute to sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve profitability.
Graco food-grade pumps are a popular choice for general food transfer. The QUANTM food-grade electric pumps feature all-stainless-steel construction with a 125 Ra surface finish. They are certified for handling a wide range of food and beverage products and meet certification requirements for some personal care applications. Suitable for products such as dressings, sauces, oils, syrups, soaps, creams, and solvents, QUANTM electric food-grade pumps are versatile for hygienic food-grade applications. The electric motor delivers up to 8x more continuous torque at low speeds than conventional motors. The fast, plug-and-play installation allows for easy replacement of existing pumps without additional investment or infrastructure changes.
-
Revolutionary Design
- Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Achieves up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a quick return on investment.
- Quiet operation reduces plant noise, improving employee safety and health.
- Smart pump control offers more accurate flow set points and integrated I/O.
-
Efficient Electric Motor
- FEP coated aluminum electric drive.
- 240 VAC 1Ph motor with a 15 ft cord and NEMA L15-20 plug.
- Non-hazardous.
-
Materials of Construction
- 125 Ra surface finish 316 stainless steel fluid section with a tri-clamp center port.
- Internal components include a 316L stainless steel seat, EPDM ball, EPDM overmold diaphragm, and EPDM manifold o-ring.
- EN 3.1 material certification.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946695410 |
| Division | PRO |
| Height | 0 IN | 0.000 CM |
| Length | 0 IN | 0.000 CM |
| Width | 0 IN | 0.000 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | 0 LBS | 0.000 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Size (mm) | 51 |
| Fluid Outlet Size (mm) | 51 |
| Maximum Amperage (A) | 7.5 |
| Maximum Flow Rate (L/min) | 303 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.19 |
| Maximum Solid Size (mm) | 4.8 |
| Model | QUANTM |
| Overall Height (in) | 20.54 |
| Series | h80 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 121 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 250 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | 316 Stainless Steel, End Port, Tri-Clamp |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Surface Finish | 125 Ra |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| Tri-Clamp Connection Size | 2 in. |
| configuration_code | QHD-FGFF1SSEPEOEPS130031 |
| Pump Size (mm) | 38 |
| Pump Size (in) | 1.5 |
