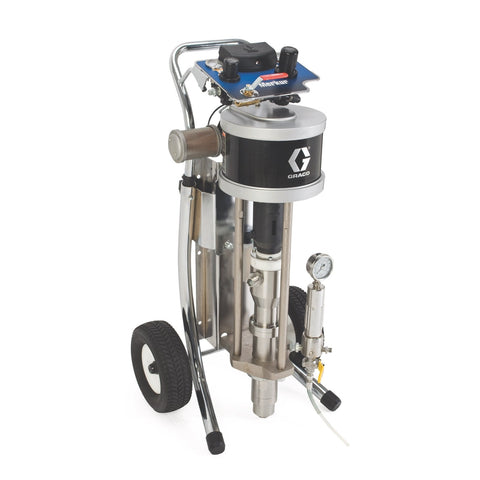

Graco | G15B21 Merkur Bellows 15:1 Ratio Pump Package with U-Cup Seal, Cart Mount, Fluid Filter
Graco
Model: G15B21
Graco Merkur bellows piston pumps offer low maintenance due to their design, which keeps seals away from the atmosphere. This design eliminates conventional throat seals, ensuring high reliability when handling moisture-sensitive materials.
- Features the highest technology air motor available.
- Operates with low air consumption, improving efficiency.
- Boasts a simple air motor design with minimal parts, reducing repair time.
- Designed for easy flushing, enabling fast color changes and less material waste.
- Constructed with 300 series stainless steel for long-lasting durability.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955088894 |
| Division | IPD |
| Height | 0 IN | 0.000 CM |
| Length | 0 IN | 0.000 CM |
| Width | 0 IN | 0.000 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | 0 LBS | 0.000 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Outlet Size (cm) | 0.9525 |
| Fluid Outlet Size (mm) | 9.53 |
| Fluid Outlet Thread Gender | Male |
| Includes | Pump Only Air Controls, Fluid Filter, U-Cup |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (bar) | 103 |
| Maximum Working Pressure (kPa) | 10300 |
| Maximum Working Pressure (psi) | 1500 |
| Number of Pieces | 2 |
| Series | Bellows |
| Maximum Flow Rate (gpm @ 60 cpm) | 0.8 |
| Gun Model | No Applicator |
| Mount Type | Cart Mount |
| Product Type | Bare Package |
| Maximum Working Pressure (MPa) | 10.3 |
| Gun Technology | Bare Package |
| Model | Merkur |
