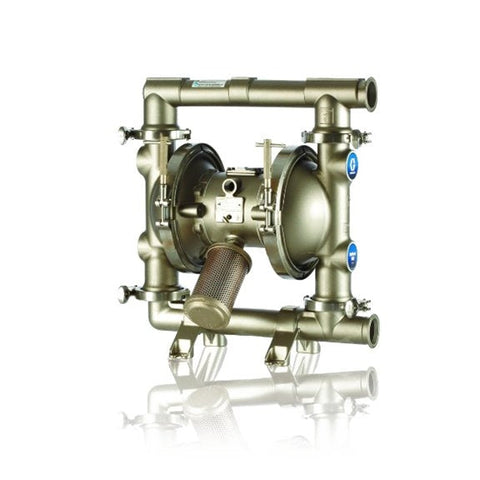

Graco | FD2122 SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, SP Balls, SP Diaphragms
Graco
Model: FD2122
Graco's SaniForce 1590 is a 1.5-inch air-operated double diaphragm (AODD) pump designed for hygienic fluid transfer. It delivers flow rates up to 100 gpm and features a quick knock-down design for simplified cleaning and a low cost of ownership.
This pump is suitable for the food processing and personal care industries. Common uses include high-volume evacuation of liquid concentrates from holding vessels and repackaging fluids from original containers to smaller ones. It can handle products such as flavorings, purees, sauces, and other low to medium viscosity materials.
- 1.5-inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar).
- Seal-less diaphragm pump design prevents leaks and failures caused by running dry.
- Graco double diaphragm pumps automatically stop under pressure, preventing failures from clogged lines or closed valves.
- Externally serviceable air valves provide high efficiency and minimize downtime.
- Features inlet and outlet tri-clamp connections for a quick knockdown design, facilitating easy cleaning and rapid maintenance.
- Constructed with a 316 stainless steel wetted section.
- All fluid contact materials are FDA-Compliant and adhere to the United States Code of Federal Regulations (CFR) Title 21.
- Capable of passing solids up to 0.1875 inches (4.8 mm).
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955194878 |
| Division | PRO |
| Height | 28.8 IN | 73.152 CM |
| Length | 22.8 IN | 57.912 CM |
| Width | 19.2 IN | 48.768 CM |
| Volume | 7.285 FT3 | 0.206 M3 |
| Shipping Weight | 120 LBS | 54.431 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| For Use With | Food and Personal Care |
| Maximum Air Consumption (SCFM) | 130 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 800 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 200 |
| Maximum Flow Rate (L/min) | 379 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Fluid Pressure (kPa) | 800 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (cm) | 0.48 |
| Maximum Solid Size (in) | 0.1875 |
| Maximum Solid Size (mm) | 4.8 |
| Model | SaniForce |
| Overall Height (in) | 20.5 |
| Series | 1590 FG |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Surface Finish | 125 Ra |
| compressor_required | Yes |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| Tri-Clamp Connection Size | 2-inch |
| fluid_passage_size_cm | 3.8 |
| configuration_code | 1590FG-PS01AS13SSSPSPPT21 |
