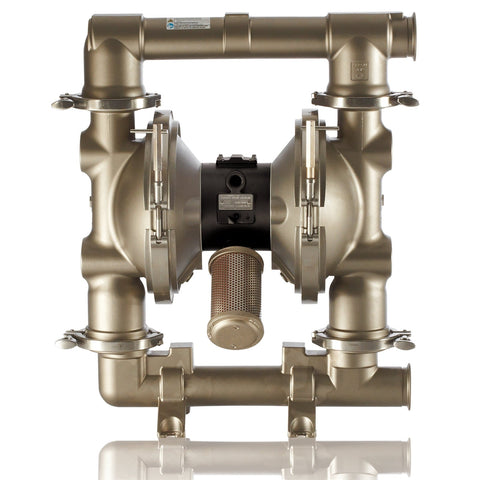

Graco | FA1111 SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, AL Center, SS Seats, PT Balls, PT Diaphragms
Graco
Model: FA1111
Graco's SaniForce 1040 is a 1-inch air-operated double diaphragm (AODD) pump designed for hygienic fluid transfer. It delivers flow rates up to 41 gpm and features a quick knock-down design for simplified cleaning and a low cost of ownership.
This pump is suitable for the food processing and personal care industries. Common uses include high-volume evacuation of liquid concentrates from storage tanks and repackaging fluids from original containers into smaller ones. It can handle products such as flavorings, purees, sauces, and other low to medium viscosity materials.
- 1-inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar).
- The seal-less diaphragm pump design prevents leaks and failures caused by running the pump dry.
- Graco double diaphragm pumps stall under pressure, preventing failures from clogged lines or closed valves.
- Externally serviceable air valves provide high efficiency and minimize downtime.
- Features inlet and outlet tri-clamp connections for a quick knockdown design, facilitating easy cleaning and rapid maintenance.
- Constructed with a 316 stainless steel wetted section.
- All fluid contact materials comply with FDA regulations and United States Code of Federal Regulations (CFR) Title 21.
- Capable of passing solids up to 0.125 inches (3.2 mm).
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955641280 |
| Division | PRO |
| Height | 18 IN | 45.720 CM |
| Length | 16.8 IN | 42.672 CM |
| Width | 9.6 IN | 24.384 CM |
| Volume | 1.68 FT3 | 0.048 M3 |
| Shipping Weight | 54 LBS | 24.494 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| For Use With | Food and Personal Care |
| Maximum Air Consumption (SCFM) | 50 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 800 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 256 |
| Maximum Flow Rate (L/min) | 155 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Fluid Pressure (kPa) | 800 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (cm) | 0.32 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.2 |
| Model | SaniForce |
| Overall Height (in) | 16.1 |
| Series | 1040 FG |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Surface Finish | 125 Ra |
| compressor_required | Yes |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25.4 |
| Tri-Clamp Connection Size | 1.5-inch |
| fluid_passage_size_cm | 2.54 |
| configuration_code | 1040FG-PA01AS13SSPTPTPT21 |
