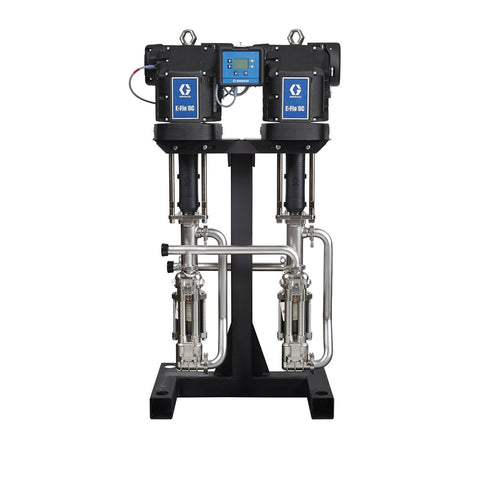

Graco | EC6J41 E-Flo DC 4-Ball Electric Circulation Pump, 4000cc, 2 x 2 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Stand
Graco
Model: EC6J41
The E-Flo DC (Dual Control) electric pumps offer up to five times greater efficiency than pneumatic pumps, resulting in reduced energy consumption and cost savings. The unique 4-ball lower design minimizes pulsation and increases flow rates. An advanced control module enhances performance and provides compatibility with Intelligent Paint Kitchen (IPK) systems.
- The advanced model allows for easy connection and management of multiple pumps using a single control module.
- Minimal pulsation during changeover ensures a consistent finish.
- The sealed lower does not require throat seal liquid (TSL), which reduces maintenance expenses and unplanned operational interruptions.
- Ultralife ceramic coatings on the rod and cylinder are designed to withstand the most demanding materials, including waterborne formulations.
- The lower operates independently, enabling the pump to adapt to fluctuating pressure and flow rate requirements thousands of times per second.
- The pump can operate independently to maintain production if lower maintenance is necessary.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652786450 |
| Division | IPD |
| Height | 27 IN | 68.580 CM |
| Length | 66 IN | 167.640 CM |
| Width | 35 IN | 88.900 CM |
| Volume | 36.094 FT3 | 1.022 M3 |
| Shipping Weight | 633 LBS | 287.124 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Type | Tri-Clamp |
| Fluid Outlet Size (mm) | 3.81 |
| Fluid Outlet Thread Gender | Female |
| Includes | Advanced Control Input, Stand |
| Maximum Continuous Cycle Rate (CPM) | 20 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Working Pressure (bar) | 19 |
| Maximum Working Pressure (kPa) | 1900 |
| Maximum Working Pressure (psi) | 276 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Voltage (V ac) | 480 |
| Minimum Voltage (V ac) | 380 |
| Overall Depth (cm) | 46.7 |
| Overall Depth (in) | 18.39 |
| Overall Depth (mm) | 467 |
| Overall Height (cm) | 151.6 |
| Overall Height (in) | 59.69 |
| Overall Height (mm) | 1516 |
| Overall Width (cm) | 72.4 |
| Overall Width (in) | 28.5 |
| Overall Width (mm) | 724 |
| Weight (kg) | 200 |
| Maximum Working Pressure (MPa) | 1.9 |
